Valmet 505

The Valmet 505 is a tractor produced by Valmet. It is equipped with a 201.4 ci 3.3 L engine. The listed engine power is Diesel (listed): 65 hp / 48.5 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 7760 to 8488 pounds.

Overview

	1982 - 1991 05 SeriesRow-Crop tractor 05 Series Row-Crop tractor

Production
Manufacturer	Valmet
Row-Crop tractor

Valmet 505 Engine
Valmet 3.3L 3-cyl diesel
Fuel tank	47.55 gal 180.0 L
Engine details ...

Valmet 505 Power
Engine	65 hp 48.5 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard. Optional air-conditioning.

Hydraulics
Pressure	2611 psi 180.0 bar
Pump flow	12.7 gpm 48.1 lpm

Tractor hitch
Rear lift	9892 lbs 4487 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	92.9 inches 235 cm
4WD Wheelbase	90.6 inches 230 cm
Weight	7760 to 8488 pounds
Front tire	10.00-16
2WD Rear tire	13.6-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery volts	12
Battery AH	150

References
505 605 705 805 905 published in 1984, by Valmet
International Success published by Valmet
Why not buy the best? published in 1985, by Valmet

Engine

Engine Detail — 201.4 ci / 3.3 L Diesel

Manufacturer	Valmet TD33DS5
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	201.4 ci 3.3 L
Bore/Stroke	4.252x4.724 inches 108 x 120 mm
Power	65 hp 48.5 kW
Fuel system	direct injection
Pre-heating	intake air heater
Compression	16:1
Rated RPM	2250
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW

Transmission

Transmission options
8-speed synchromesh
16-speed two-speed power shift

Transmission — 8 forward and 4 reverse synchromesh

Type	synchromesh
Gears	8 forward and 4 reverse
Clutch	310mm dry disc
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.
With 16.9-34 rear tires.

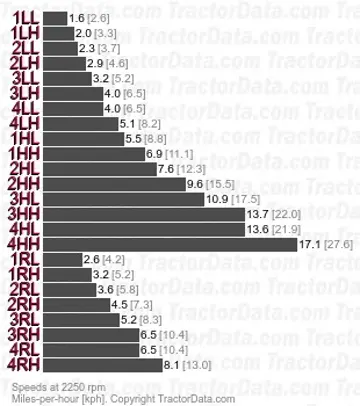

Transmission — 16 forward and 8 reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and 8 reverse
A push-button two-speed powershift added to the basic transmission.
With 16.9-34 rear tires.

Dimensions

Valmet 505 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 13.6-38
4WD Standard tires (ag)	Front: 12.4-24. Rear: 13.6-38

Dimensions
2WD Wheelbase	92.9 inches 235 cm
4WD Wheelbase	90.6 inches 230 cm
Length	172.8 inches 438 cm
Width	77.2 inches 196 cm
Height	105.1 inches 266 cm
2WD Weight	7760 lbs 3519 kg
4WD Weight	8488 lbs 3850 kg
Ground clearance	17.3 inches 43 cm

Photos

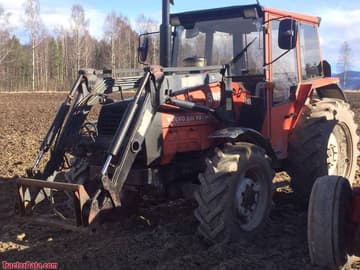

Volvo BM Valmet 505 with loader. left side.

Volvo BM Valmet 505, right side.
