valmet 6100
 | 1991 - 1994
Mezzo SeriesRow-Crop tractor | 1991 - 1994 | Mezzo Series | Row-Crop tractor |
|---|---|---|---|---|
1991 - 1994 | ||||
Mezzo Series | ||||
Row-Crop tractor | ||||
1991 - 1994 | |
|---|---|
Mezzo Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Valmet |
Row-Crop tractor | |
Valmet 6100 Engine | |
|---|---|
SisuDiesel 3.3L 3-cyl diesel | |
Fuel tank | 43.6 gal
165.0 L |
Engine details ...  | |
Valmet 6100 Transmissions | |
|---|---|
12-speed syncro shuttle | |

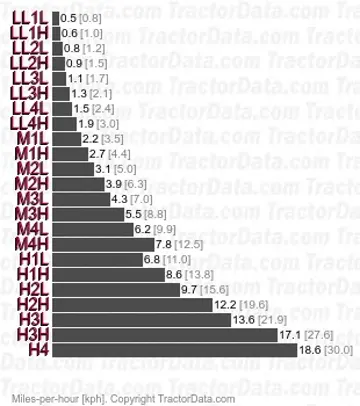

24-speed two-speed power shift | |
36-speed three-speed power shift | |
Transmission details ...  |
Valmet 6100 Power | |
|---|---|
Engine | 77.8 hp
58.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab standard with optional air-conditioning. |
Hydraulics | |
|---|---|
Pump flow | 18.5 gpm
70.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 9700 lbs
4399 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Engine RPM | 540@1874 |
| 1000@2080 |
Dimensions & Tires | |
|---|---|
Wheelbase | 90.6 inches
230 cm |
Weight | 8818 lbs
3999 kg |
Front tire | 10.00-16 |
Rear tire | 16.9R34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Battery AH | 150 |
References | |
|---|---|
 | |
6100 - 6300 - 6400 - 6600 - 8000 - 8100 Twin Trac published in 1992, by Valmet | |
6000-8400 published in 1994, by Valmet | |
6000-8400 published in 1995, by Valmet |
