Valtra 3100
The Valtra 3100 is a tractor produced by Valtra. It is equipped with a 172.5 ci 2.8 L engine. The listed engine power is Diesel (listed): 52 hp / 38.8 kW. Transmission: 24 forward and reverse. Operating weight: 5159 to 5644 pounds.
Engine Power
Diesel (listed): 52 hp / 38.8 kW
Fuel & Capacities
15.9 gal
60.2 L
Transmission
24 forward and reverse
Operating Weight
5159 to 5644 pounds
Overview
 | 2004 - 2008
3000 SeriesCompact Utility tractor
3000 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Valtra |
Compact Utility tractor | |
Variants | |
|---|---|
3100C | compact tractor |
3100F | narrow orchard tractor |
Valtra 3100 Engine | |
|---|---|
Deutz 2.8L 3-cyl diesel | |
Fuel tank | 15.9 gal
60.2 L |
Engine details ...  | |
Valtra 3100 Transmission | |
|---|---|
24-speed partially synchronized | |
Transmission details ...  |
Valtra 3100 Power | |
|---|---|
Engine | 52 hp
38.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Cab optional with heat and A/C |
Hydraulics | |
|---|---|
Valves | 1 to 4 |
Pump flow | 7.1 gpm
26.9 lpm |
Steering flow | 5.3 gpm
20.1 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | ground/540/540E |
ground/540/1000 OptOptional | |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Weight | 5159 to 5644 pounds |
Front tire | 9.5R20 |
Rear tire | 13.6R28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Engine
Engine Detail — 172.5 ci / 2.8 L Diesel
Manufacturer | Deutz F3L912 |
Fuel Type | Diesel |
Configuration | 3-cylinder, air-cooled |
Displacement | 172.5 ci
2.8 L |
Bore/Stroke | 3.937x4.724 inches
100 x 120 mm |
Power | 52 hp
38.8 kW |
Rated RPM | 2350 |
Torque | 125.4 lb-ft
170.0 Nm |
Torque RPM | 1600 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 24 forward and reverse partially synchronized
Type | partially synchronized |
Gears | 24 forward and reverse |
Four synchronized gears in three ranges with splitter. | |
Dimensions
Valtra 3100 Tires | |
|---|---|
Ag front | 9.5R20 |
Ag rear | 13.6R28 |
Ag front | 10.0/75-15.3 (orchard) |
Ag rear | 360/70-24 (orchard) |
Dimensions | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Length | 148 inches
375 cm |
Width | 66.9 inches (C)
169 cm |
52 inches (F)
132 cm | |
Height (ROPS) | 101.4 inches
257 cm |
Height (cab) | 91.3 inches
231 cm |
ROPS Weight | 5159 lbs
2340 kg |
Cab Weight | 5644 lbs
2560 kg |
Ground clearance | 13.8 inches
35 cm |
Photos

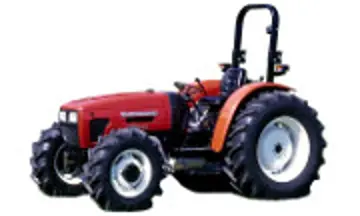

Valtra 3100 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Valtra 3100 based on its 52 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Valtra 3100.
Estimated Continuous Field Runtime: 5.9 hrs
Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (15.9 gal / 60.2 L).
Estimated 75% Load Fuel Burn~2.7 gal/hr (10.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Valtra 3100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Valtra 3100.
Converted Equivalents:
Horsepower (HP)52 hp
Kilowatts (kW)38.8 kW
Metric Horsepower (PS / CV)52.7 PS
Direct Competitor Comparison
Compare Valtra 3100 against same-era industry alternatives in the same horsepower class.
Current Model
Valtra
Valtra 3100
Engine Power:Diesel (listed): 52 hp / 38.8 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 340
Engine Power:47
Production Years:1958 - 1963
