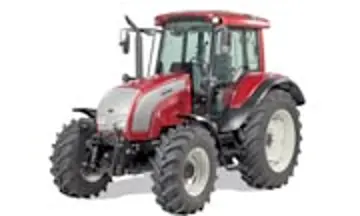

valtra c130
 | 2004 - 2006
C SeriesRow-Crop tractor | 2004 - 2006 | C Series | Row-Crop tractor |
|---|---|---|---|---|
2004 - 2006 | ||||
C Series | ||||
Row-Crop tractor | ||||
2004 - 2006 | |
|---|---|
C Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Valtra |
Row-Crop tractor | |
Valtra C130 Engine | |
|---|---|
SisuDiesel 4.4L 4-cyl diesel | |
Fuel tank | 47.6 gal
180.2 L |
Engine details ...  | |
Valtra C130 Transmission | |
|---|---|
36-speed power shift | |
Transmission details ...  |
Valtra C130 Power | |
|---|---|
Engine | 135 hp
100.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | automatic |
Power steering | |
Wet disc brakes | |
Cab standard with optional air-conditioning. | |
Hydraulics | |
|---|---|
Type | load sensing |
Pressure | 2843 psi
196.0 bar |
Valves | 2 to 4 |
Total flow | 24 gpm
90.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | 3 |
Rear lift (at ends) | 15,870 lbs
7198 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
| 540/540E |
| 1000/540E |
| 1000 |
Engine RPM | 540@1874 |
| 540E@1539 |
| 1000@2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 95.1 inches
241 cm |
Weight | 10,690 lbs
4848 kg |
Front tire | 14.9R28 |
Rear tire | 18.4R38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 120 |
Battery volts | 12 |
Battery AH | 174 |
References | |
|---|---|
 | |

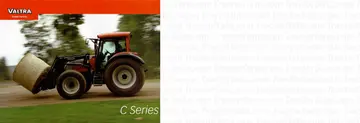

C Series published by Valtra |
