Volvo 2654

The Volvo 2654 is a tractor produced by Volvo. It is equipped with a 334.4 ci 5.5 L engine. The rated power output is 140 hp 104.4 kW. Transmission: 14 forward and 4 reverse. Operating weight: 16535 lbs 7500 kg.

Overview

	1979 - 1983	1979 - 1983

Production
Manufacturer	Volvo
Total built	1255

Variants
2650	2WD
2654	4WD

Volvo 2654 Engine
Volvo 5.5L 6-cyl diesel
Fuel tank	55.5 gal 210.1 L
Engine details ...

Volvo 2654 Transmission
14-speed two-speed power shift
Transmission details ...

Volvo 2654 Power
Engine	140 hp 104.4 kW

Mechanical
Four-wheel drive
Power steering
Cab standard.

Hydraulics
Pump flow	12.4 gpm 46.9 lpm

Tractor hitch
Rear Type	III/II
Rear lift	7497 lbs 3400 kg

Power Take-off (PTO)
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	16535 lbs 7500 kg
Front tire	14.9-24
Rear tire	20.8-38
Full dimensions and tires ...

References
Volvo BM 2654 published in 1981

Engine

Engine Detail — 334.4 ci / 5.5 L Diesel

Manufacturer	Volvo TD60
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	334.4 ci 5.5 L
Bore/Stroke	3.87x4.72 inches 98 x 120 mm
Power	140 hp 104.4 kW
Compression	16:1
Rated RPM	2300
Torque	357.7 lb-ft 485.0 Nm
Torque RPM	1600
Starter volts	12

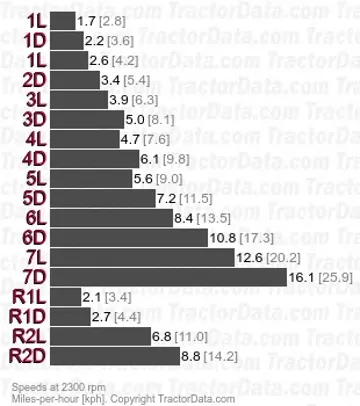

Transmission

Transmission — 14 forward and 4 reverse two-speed power shift

Type	two-speed power shift
Gears	14 forward and 4 reverse
With 20.8-38 rear tires.

Dimensions

Volvo 2654 Tires
Ag front	14.9-24
Ag rear	20.8-38
Ag rear	18.4-38

Dimensions
Wheelbase	112.6 inches 286 cm
Length	183.1 inches 465 cm
Width	91.7 inches 232 cm
Height	120.1 inches 305 cm
Weight	16535 lbs 7500 kg
Ground clearance	13.8 inches 35 cm
Front tread	68.5 inches 173 cm
Rear tread	70.9 inches 180 cm

Photos

Africa-specification Volvo 2654.
