Wallis Bear
The Wallis Bear is a tractor produced by Wallis. It is equipped with a 1480 ci 24.3 L engine. Transmission: 3 forward and 1 reverse. Drive type: 3x2 2WD. Operating weight: 16000 lbs 7257 kg.
Drive & Traction
3x2 2WD
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
16000 lbs
7257 kg
Wallis Bear Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1910 - 1914 | 1910 - 1914 |
|---|
Production | |
|---|---|
Manufacturer | Wallis (a part of J.I. Case Plow Works) |
Factories | Cleveland, Ohio, USA |
Racine, Wisconsin, USA | |
Information on the Wallis Bear is limited and conflicting. It appears the Bear name may have been used on a variety of Wallis tractors going back to 1902, with a claim of 40 to 80 belt horsepower. The basic three-wheel configuration is the same. One Wallis Bear survives today, from a nine or ten tractor production run that occured around 1912. | |
Wallis Bear Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Wallis Bear Power | |
|---|---|
Drawbar (claimed) | 30 hp
22.4 kW |
Belt (claimed) | 50 hp
37.3 kW |
Plows | 10 |
Mechanical | |
|---|---|
Drive | 3x2 2WD |
Steering | mechanical power assist |
Open operator station, optional canopy. | |
Dimensions & Tires | |
|---|---|
Weight | 16000 lbs
7257 kg |
Full dimensions and tires ...  | |
Links | |
|---|---|
Wallis Bear: article on the only surviving Bear, at Farm Collector |
Engine
Engine options | |
|---|---|
Wallis 17.4L 4-cyl gasoline | |
Wallis 24.3L 4-cyl gasoline |
Engine Detail — 1062 ci / 17.4 L Gasoline
Manufacturer | Wallis |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
The 6.5-inch bore engine is mentioned in literature from 1914. | |
Displacement | 1062 ci
17.4 L |
Bore/Stroke | 6.50x8.00 inches
165 x 203 mm |
Rated RPM | 650 |
Starter type | hand-crank |
Engine Detail — 1480 ci / 24.3 L Gasoline
Manufacturer | Wallis |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
The 7.5-inch bore engine is found on the only known remaining Wallis Bear tractor. | |
Displacement | 1480 ci
24.3 L |
Bore/Stroke | 7.50x9.00 inches
190 x 229 mm |
Rated RPM | 650 |
Starter type | hand-crank |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Wallis Bear Tires |
|---|
Dimensions | |
|---|---|
Weight | 16000 lbs
7257 kg |
Photos

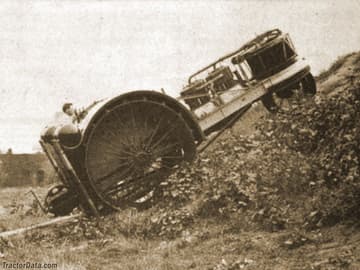

Wallis Bear climbing a steep hill.
