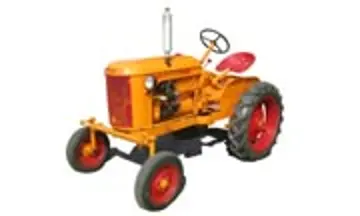

Waterloo Manufacturing Company Bronco

The Waterloo Manufacturing Company Bronco is a tractor produced by Waterloo Manufacturing Company. It is equipped with a 45.9 ci 0.8 L engine. The listed engine power is Gasoline (listed): 11.2 hp / 8.4 kW. Transmission: 3 forward and 1 reverse. Operating weight: 1329 lbs 602 kg.

Overview

	1948 - 1950 Utility tractor

Production
Manufacturer	Waterloo Manufacturing Company
Utility tractor
Built in Waterloo, Ontario, Canada

Waterloo Manufacturing Company Bronco Engine
Wisconsin 0.8L 2-cyl gasoline
Engine details ...

Waterloo Manufacturing Company Bronco Transmission
3-speed gear
Transmission details ...

Waterloo Manufacturing Company Bronco Power
Engine	11.2 hp 8.4 kW

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	1329 lbs 602 kg
Front tire	4.00-12
Rear tire	7-24
Full dimensions and tires ...

Engine

Engine Detail — 45.9 ci / 0.8 L Gasoline

Manufacturer	Wisconsin TE
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	45.9 ci 0.8 L
Bore/Stroke	3.00x3.25 inches 76 x 83 mm
Power	11.2 hp 8.4 kW
Fuel system	carburetor
Rated RPM	2600
Firing order	1-2
Starter type	hand crank
	electric OptOptional
Sparkplug gap	0.030 inches 0.762 mm

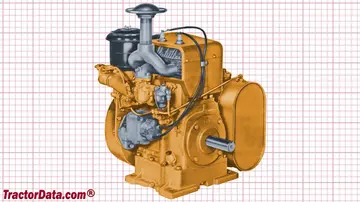

Waterloo Manufacturing Company Bronco Engine

Transmission

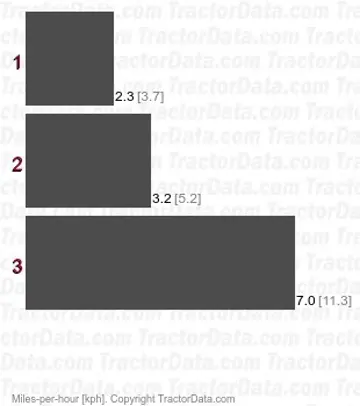

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	165mm dry disc

Dimensions

Waterloo Manufacturing Company Bronco Tires
Ag front	4.00-12
Ag rear	7-24
Ag rear	8-24

Dimensions
Weight	1329 lbs 602 kg
Ground clearance	21.5 inches 54 cm
Front tread	36 inches 91 cm
Rear tread	34 to 54 inches 86 to 137 cm

Photos

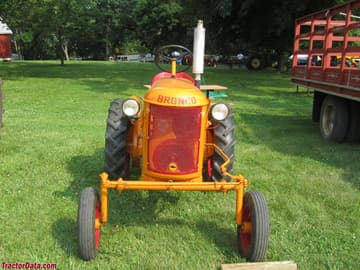

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Manufacturing Company Bronco

Waterloo Bronco operator station and controls.
