wheel horse lawn tractors c 121
 | 1978 - 1979
C SeriesGarden tractor | 1978 - 1979 | C Series | Garden tractor |
|---|---|---|---|---|
1978 - 1979 | ||||
C Series | ||||
Garden tractor | ||||
1978 - 1979 | |
|---|---|
C Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Wheel Horse |
Garden tractor | |
Built in South Bend, Indiana, USA | |
Original price | $2,075 (1978 gear ) |
$2,310 (1978 hydro ) | |
Wheel Horse C-121 Engine | |
|---|---|
12HP Kohler 476cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Wheel Horse C-121 Transmissions | |
|---|---|
6-speed gear | |
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Wheel Horse C-121 photos...  |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual dry disc |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 600 to 630 pounds |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Wheel Horse C-121 attachments | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
C-121 Serial Numbers | |
|---|---|
Location: | Serial number plate below the dashboard. Tractor model codes shown. |
1978 | 81-12K801 (gear) |
1979 | 91-12K801 (gear) |
1979 | 91-12K802 (gear) |
1978 | 81-12KS01 (hydro) |
1979 | 81-12KS01 (hydro) |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery volts | 12 |

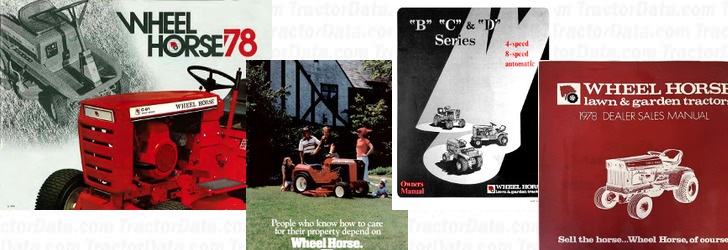

References | |
|---|---|
 | |
WHeel Horse '78 published in 1978, by Wheel Horse | |
WHeel Horse '79 published in 1979, by Wheel Horse | |
B C & D Series (810134R1) published in 1979 | |
1978 Dealer Sales Manual published in 1977, by Wheel Horse |
