White 2-110
The White 2-110 is a tractor produced by White. It is equipped with a 354 ci 5.8 L engine. The rated power output is 110.52 hp 82.4 kW. Transmission: 3x6 Over/Under. Operating weight: 11685 to 13995 pounds.
Engine Power
110.52 hp
82.4 kW
Fuel & Capacities
58 gal
219.5 L
Transmission
3x6 Over/Under
Operating Weight
11685 to 13995 pounds
White 2-110 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1982 - 1987
Row-Crop tractor |
|---|---|
1982 - 1987 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | White |
Row-Crop tractor | |
Original price was $43,000 in 987 | |
White 2-110 Engine | |
|---|---|
Perkins 5.8L 6-cyl diesel | |
Engine details ...  |
White 2-110 Transmission | |
|---|---|
18-speed partial powershift | |
Transmission details ...  |
White 2-110 Power | |
|---|---|
PTO (claimed) | 110 hp
82.0 kW |
Drawbar (tested) | 95.07 hp
70.9 kW |
PTO (tested) | 110.52 hp
82.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Independent hydraulic dry disc brakes | |
Cab standard with heat and air-conditioning. Optional ROPS canopy. |
Capacity | |
|---|---|
Fuel | 58 gal
219.5 L |
Hydraulic system | 9 gal
34.1 L |
8.25 gal (with 3-pt)
31.2 L | |
Hydraulics | |
|---|---|
Type | closed center constant pressure |
Capacity | 9 gal
34.1 L |
8.25 gal (with 3-pt)
31.2 L | |
Pressure | 2250 psi
155.1 bar |
Valves | 2 |
Total flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
III/II OptOptional | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 109.6 inches
278 cm |
4WD Wheelbase | 89 inches
226 cm |
Weight | 11685 to 13995 pounds |
Front tire | 11L-15 |
2WD Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 61 |
Batteries | 2 |
Battery volts | 6 |
References | |
|---|---|
 | |
2-88/2-110 Field Boss Tractors published in 1984, by White |
Engine

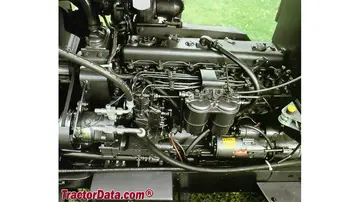

Engine Detail — 354 ci / 5.8 L Diesel
Manufacturer | Perkins |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 354 ci
5.8 L |
Bore/Stroke | 3.875x5.00 inches
98 x 127 mm |
Air cleaner | dual paper elements |
Compression | 15.5:1 |
Rated RPM | 2200 |
Idle RPM | 775-2420 |
Starter volts | 12 |
Oil capacity | 16 qts
15.1 L |
Coolant capacity | 24 qts
22.7 L |
White 2-110 Engine | |
|---|---|
 |
Transmission

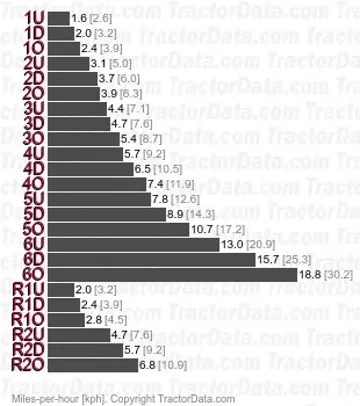

Transmission — 3x6 Over/Under
Transmission | 3x6 Over/Under |
Type | partial powershift |
Gears | 18 forward and 6 reverse |
Oil capacity | 46.5 qts
44.0 L |
Six forward and two reverse gears with an over and under powershift for each gear. | |
 | |
Dimensions
White 2-110 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 11L-15. Rear: 18.4-38 |
4WD Standard tires (ag) | Front: 14.9-28. Rear: 18.4-38 |
4WD Optional tires (ag) | Front: 18.4-28. Rear: 20.8-38 |
Ag front | 11L-15 |
Ag rear | 18.4-38 |
2WD Ag front | 11.00-16 |
2WD Ag rear | 18.4-34 |
2WD Ag rear | 16.9-38 |
2WD Ag rear | 20.8-34 |
2WD Ag rear | 20.8-38 |
2WD Ag rear | 23.1-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 109.6 inches
278 cm |
4WD Wheelbase | 89 inches
226 cm |
Length | 166.1 inches
421 cm |
Width | 80.6 inches
204 cm |
Height (cab) | 116 inches
294 cm |
2WD Clearance (front axle) | 25.6 inches
65 cm |
4WD Clearance (front axle) | 17 inches
43 cm |
Clearance (rear axle) | 25.4 inches
64 cm |
Clearance (drawbar) | 13.5 inches
34 cm |
Rear axle | 3.1875 inch diameter
80 mm |
Front tread | 60 to 92 inches
152 to 233 cm |
Rear tread | 61.25 to 119.5 inches
155 to 303 cm |
White 2-110 Weight | |
|---|---|
2WD cab Shipping | 11685 lbs
5300 kg |
4WD cab Shipping | 13470 lbs
6109 kg |
Operating | 13995 lbs
6348 kg |
Tests
Nebraska Tractor Test 1468 | |
|---|---|
Diesel 18-speed 4WD
March 17 - April 5, 1983
Link: Nebraska Tractor Test 1468 file | |
PTO performance | |
Power at rated engine speed | 110.52 hp
82.4 kW |
Fuel use | 6.6 gal/hour
25.0 l/hour |
Drawbar performance | |
Max power | 95.07 hp
70.9 kW |
Fuel use | 6.6 gal/hour
25.0 l/hour |
Gear 1-over used for power test. | |
Max pull | 9,500 lbs
4309 kg |
Gear 2-direct used for pull test. | |
Photos
White 2-110 tractor photo
