white 6510
 | 1998 - 2001
6010 SeriesUtility tractor | 1998 - 2001 | 6010 Series | Utility tractor |
|---|---|---|---|---|
1998 - 2001 | ||||
6010 Series | ||||
Utility tractor | ||||
1998 - 2001 | |
|---|---|
6010 Series | |
Utility tractor |
Production | |
|---|---|
Manufacturer | White (a part of AGCO) |
Utility tractor | |
Original price was $36,000 in 1999 | |
Variants | |
|---|---|
8765 | similar AGCO Allis model |
White 6510 Engine | |
|---|---|
Cummins 3.9L 4-cyl diesel | |
ROPS Fuel tank | 33.5 gal
126.8 L |
Cab Fuel tank | 34 gal
128.7 L |
Engine details ...  | |
White 6510 Transmissions | |
|---|---|
12-speed partially synchronized | |
12-speed synchronized shuttle | |
24-speed power shuttle | |
Transmission details ...  |
White 6510 Power | |
|---|---|
PTO (claimed) | 85 hp
63.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | outboard planetary |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Two-post folding ROPS. Cab optional with air-conditioning. FieldStar ready | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 3045 psi
210.0 bar |
Valves | 2 |
Pump flow | 7.9 gpm (hitch)
29.9 lpm |
| 10 gpm (remote)
37.9 lpm |
Total flow | 25.8 gpm
97.7 lpm |
Steering flow | 7.9 gpm
29.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at 24"/610mm) | 4100 lbs
1859 kg |
| 6200 lbsOptOptional
2812 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 99 inches
251 cm |
Weight | 7870 to 8650 pounds |
Front tire | 9.5L-15 |
Rear tire | 13.6R38 |
Full dimensions and tires ...  | |
White 6510 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
6510 Serial Numbers | |
|---|---|
1998 | G01001 |
1999 | H01001 |
FAQ: How to read a serial number table. | |

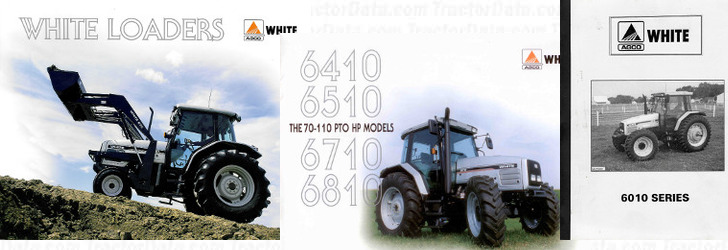

References | |
|---|---|
 | |
White Loaders published in 1999, by AGCO | |
6410 - 6510 - 6710 - 6810 published by AGCO | |
6010 Series published in 1998, by AGCO |
