White Town & Country 110
The White Town & Country 110 is a tractor produced by White Lawn Tractors. It is equipped with a 390 cc 23.85 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1970 - 1974
Garden tractorJacobsen built
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | White |
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
White 110 Engine | |
|---|---|
10HP Kohler 390cc 1-cyl gasoline | |
Engine details ...  |
White 110 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 390 cc / 23.85 ci Gasoline
Manufacturer | Kohler K241S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 390 cc
23.85 ci |
Bore/Stroke | 3.2515x2.875 inches
83 x 73 mm |
Power | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
White 110 Tires |
|---|
Dimensions |
|---|
Photos

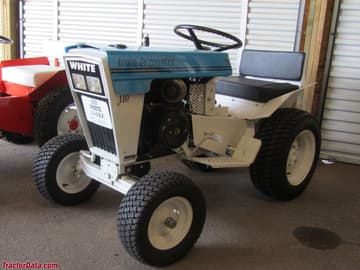

White Town & Country 110
White 110 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for White Lawn Tractors White Town & Country 110.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
White Lawn Tractors White Town & Country 110 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for White Lawn Tractors White Town & Country 110.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
