White Yard Boss GT-1050
The White Yard Boss GT-1050 is a tractor produced by White Lawn Tractors. It is equipped with a 392 cc 23.94 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: Peerless 2315.
Engine Power
10 hp
7.5 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 2315
White Lawn Tractors White Yard Boss GT-1050 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

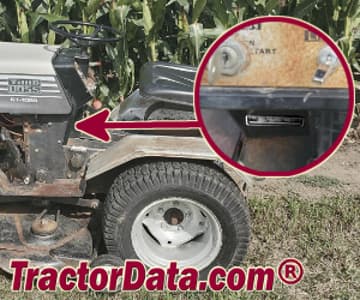

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1974 - 1976
Garden tractor |
|---|---|
1974 - 1976 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | White |
Garden tractor | |
White GT-1050 Engine | |
|---|---|
10HP Briggs & Stratton 392cc 1-cyl gasoline | |
Engine details ...  |
White GT-1050 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical disc brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Mid PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Front tire | 16x6.50 |
Rear tire | 23x9.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
1975 Farm Equipment Line published by White | |
1976 Farm Equipment Line published by White |
Engine
Engine Detail — 392 cc / 23.94 ci Gasoline
Manufacturer | Briggs & Stratton 243431 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 392 cc
23.94 ci |
Bore/Stroke | 3.0625x3.25 inches
78 x 83 mm |
Power | 10 hp
7.5 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Peerless 2315
Transmission | Peerless 2315 |
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Dimensions
White GT-1050 Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 23x9.50 |
Dimensions |
|---|
Attachments
Mower deck | |
|---|---|
Type | mid-mount White 990-100 |
3-blade with manual lift | |
Overall width | 42 inches
106 cm |
Photos

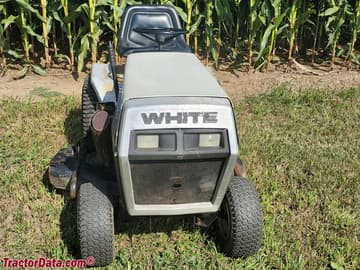

White GT-1050 garden tractor.
White GT-1050 garden tractor dashboard.
