White LT 542H

The White LT 542H is a tractor produced by White Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The rated power output is 19.5 hp 14.5 kW. Transmission: infinite forward and reverse. Operating weight: 545 lbs 247 kg.

Overview

	2005 - 2007 Lawn tractor
2005 - 2007
Lawn tractor

Production
Manufacturer	White (a part of MTD)
Lawn tractor
Original price was $1,600 in 2007

White LT 542H Engine
19.5HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	1.5 gal 5.7 L
Engine details ...

White LT 542H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	545 lbs 247 kg
Front tire	15x6-8
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	5
Battery CCA	190
Battery volts	12

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Briggs & Stratton 310000
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft V-Twin
Displacement	501 cc 30.6 ci
Bore/Stroke	3.56x3.062 inches 90 x 78 mm
Power	19.5 hp 14.5 kW
Starter volts	12
Oil capacity	1.9 qts 1.8 L

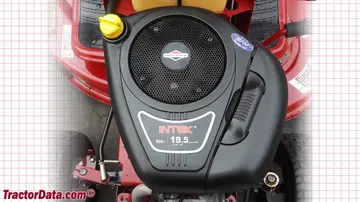

White LT 542H Engine
Image courtesy of dwardenski

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Manufacturer	Hydro-Gear
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	0.6 qts 0.6 L

Dimensions

White LT 542H Tires
Lawn/turf front	15x6-8
Lawn/turf rear	20x8-8

Dimensions
Wheelbase	46 inches 116 cm
Length	68 inches 172 cm
Weight	545 lbs 247 kg
Front axle	Cast-iron

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount White
Cutting width	42 inches 106 cm

Photos

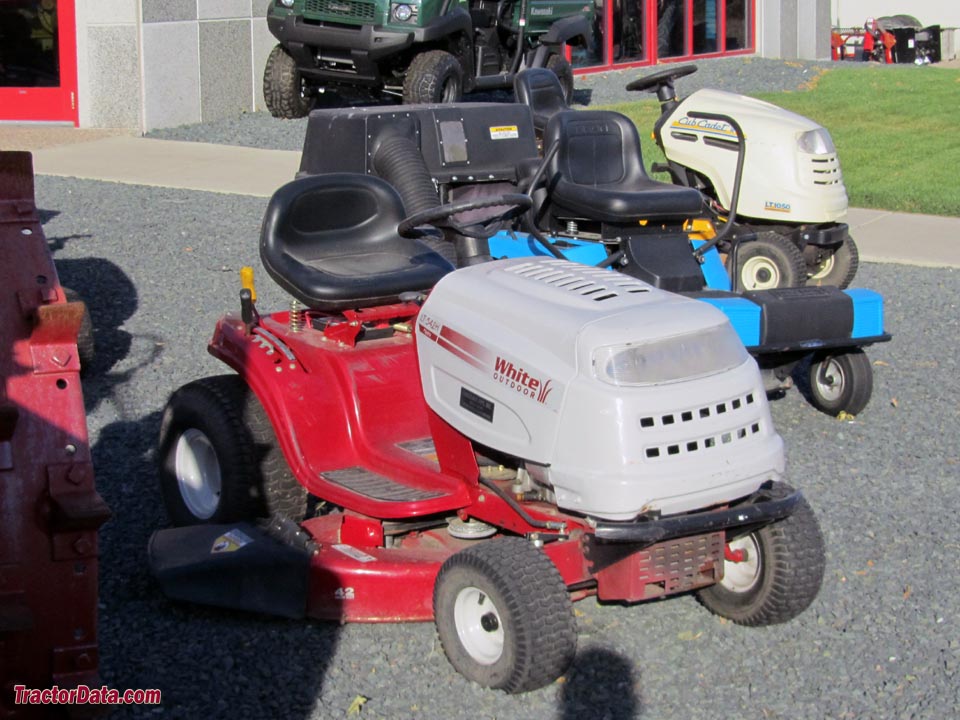

White LT 542H

White LT 542H

White LT542H with bagger.

White LT542H with bagger.

White LT542H hood and seat raised.
