White R-86
The White R-86 is a tractor produced by White Lawn Tractors. It is equipped with a 319 cc 19.5 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: CruiseMatic. Operating weight: 362 lbs 164 kg.
Overview
 | 1985 - 1991
Riding lawn mower |
|---|---|
1985 - 1991 | |
Riding lawn mower | |
1985 - 1991 | |
|---|---|
Riding lawn mower |
Production | |
|---|---|
Manufacturer | White (a part of MTD) |
Riding lawn mower | |
Original price was $1,149 in 1990 | |
White R-86 Engine | |
|---|---|
8HP Briggs & Stratton 319cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
White R-86 Transmission | |
|---|---|
6-speed CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
White R-86 photos...  |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 362 lbs
164 kg |
Front tire | 11x4 |
Rear tire | 16x6.5 |
Full dimensions and tires ...  | |
White R-86 attachments | |
|---|---|
30" mid-mount mower deck | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery CCA | 125 |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Tractor Accessories published in 1988, by White | |
Riding Mowers & Lawn Tractors published in 1987, by White | |
Riding Mowers & Lawn Tractors published in 1988, by White | |
Lawn & Garden Tractors published in 1990, by White |
Engine
| 1985 - 1991
Riding lawn mower |
|---|---|
1985 - 1991 | |
Riding lawn mower | |
1985 - 1991 | |
|---|---|
Riding lawn mower |
Engine Detail | |
|---|---|
Briggs & Stratton | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 319 cc
19.5 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power (gross) | 8 hp
6.0 kW |
Air cleaner | foam element |
Starter type | electric |
Transmission
| 1985 - 1991
Riding lawn mower |
|---|---|
1985 - 1991 | |
Riding lawn mower | |
1985 - 1991 | |
|---|---|
Riding lawn mower |
Transmission | |
|---|---|
Transmission | CruiseMatic |
Type | belt-driven CVT |
Gears | 6 forward and reverse |
Speeds | |
|---|---|
 |
Dimensions
| 1985 - 1991
Riding lawn mower |
|---|---|
1985 - 1991 | |
Riding lawn mower | |
1985 - 1991 | |
|---|---|
Riding lawn mower |
White R-86 Tires | |
|---|---|
Lawn/turf front | 11x4 |
Lawn/turf rear | 16x6.5 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Width | 56 inches
142 cm |
Height | 41 inches
104 cm |
Weight | 362 lbs
164 kg |
Attachments
| 1985 - 1991
Riding lawn mower |
|---|---|
1985 - 1991 | |
Riding lawn mower | |
1985 - 1991 | |
|---|---|
Riding lawn mower |
30" Mower deck | |
|---|---|
Type | mid-mount White |
1-blade with manual lift | |
Cutting width | 30 inches
76 cm |
Cut height | 1 to 4.5 inch
2 to 11 cm |
Photos

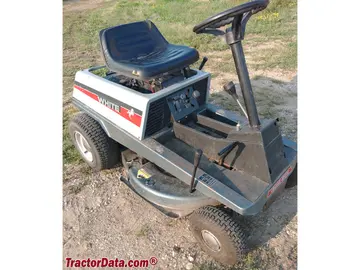

White R-86
White R-86
