White T-802
The White T-802 is a tractor produced by White Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The rated power output is 8 hp 6.0 kW. Transmission: 5 forward and 1 reverse. Operating weight: 350 lbs 158 kg.
Engine Power
8 hp
6.0 kW
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Operating Weight
350 lbs
158 kg
White Lawn Tractors White T-802 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1977 - 1978
Rear-discharge mowerMTD built |
|---|---|
1977 - 1978 | |
Rear-discharge mower | |
MTD built | |
1977 - 1978 | |
|---|---|
Rear-discharge mower | |
MTD built |
Production | |
|---|---|
Distributor | White |
Manufacturer | MTD |
Rear-discharge mower | |
White T-802 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
White T-802 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 350 lbs
158 kg |
Front tire | 11.00x4.00 |
Rear tire | 14.50x4.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Equipment published in 1977, by White | |
Lawn and Garden Equipment published in 1978, by White | |
1977 Farm Equipment Line published by White | |
1978 Farm Equipment Line published by White | |
1979 Farm Equipment Line published by White |
Engine
| 1977 - 1978
Rear-discharge mowerMTD built |
|---|---|
1977 - 1978 | |
Rear-discharge mower | |
MTD built | |
1977 - 1978 | |
|---|---|
Rear-discharge mower | |
MTD built |
Engine Detail — 318 cc / 19.44 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 318 cc
19.44 ci |
Bore/Stroke | 3.00x2.75 inches
76 x 70 mm |
Power | 8 hp
6.0 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1977 - 1978
Rear-discharge mowerMTD built |
|---|---|
1977 - 1978 | |
Rear-discharge mower | |
MTD built | |
1977 - 1978 | |
|---|---|
Rear-discharge mower | |
MTD built |
Transmission — 5 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Dimensions
| 1977 - 1978
Rear-discharge mowerMTD built |
|---|---|
1977 - 1978 | |
Rear-discharge mower | |
MTD built | |
1977 - 1978 | |
|---|---|
Rear-discharge mower | |
MTD built |
White T-802 Tires | |
|---|---|
Lawn/turf front | 11.00x4.00 |
Lawn/turf rear | 14.50x4.50 |
Dimensions | |
|---|---|
Shipping weight | 350 lbs
158 kg |
Attachments
| 1977 - 1978
Rear-discharge mowerMTD built |
|---|---|
1977 - 1978 | |
Rear-discharge mower | |
MTD built | |
1977 - 1978 | |
|---|---|
Rear-discharge mower | |
MTD built |
Attachment overview | |
|---|---|
The White T-802 came standard with a rear-discharge deck and 4.5-bushel bagger. A rear deflector chute and rear tow plate were available in place of the bagger. |
26" Mower deck | |
|---|---|
Type | mid-mount White |
2-blade | |
Cutting width | 26 inches
66 cm |
Photos

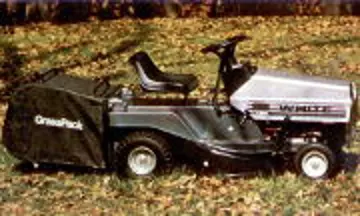

White T-802 tractor photo
