Wisconsin Tractor 22-40
The Wisconsin Tractor 22-40 is a tractor produced by Wisconsin Tractor. It is equipped with a 665 ci 10.9 L engine. Transmission: 2 forward and 1 reverse.
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Overview
 | 1918 - 1923
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Wisconsin Tractor |
Standard-tread tractor | |
Built in Sauk City, Wisconsin, USA | |
Wisconsin Tractor 22-40 Engine | |
|---|---|
Climax 10.9L 4-cyl gasoline | |
Engine details ...  |
Wisconsin Tractor 22-40 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Wisconsin Tractor 22-40 Power | |
|---|---|
Drawbar (claimed) | 22 hp
16.4 kW |
Belt (claimed) | 40 hp
29.8 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 665 ci / 10.9 L Gasoline
Manufacturer | Climax |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 665 ci
10.9 L |
Bore/Stroke | 5.50x7.00 inches
140 x 178 mm |
Rated RPM | 800 |
Starter type | hand-crank |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
Dimensions
Dimensions |
|---|
Photos

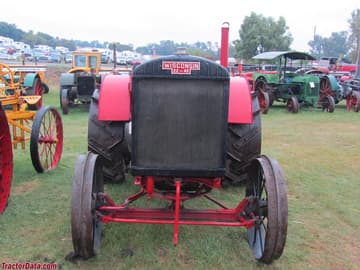

Wisconsin Tractor 22-40
Wisconsin Tractor 22-40
Wisconsin Tractor 22-40
Wisconsin Tractor 22-40
Wisconsin Tractor 22-40 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Wisconsin Tractor 22-40.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
