Yamaha YT3600
The Yamaha YT3600 is a tractor produced by Yamaha Lawn Tractors. It is equipped with a 358 cc 21.9 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: infinite forward and reverse. Operating weight: 496 to 514 pounds.
Engine Power
Gasoline (gross): 12 hp / 8.9 kW
Fuel & Capacities
2.5 gal
9.5 L
Transmission
infinite forward and reverse
Operating Weight
514 lbs
233 kg
Overview
 | 1988 - 1992
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Yamaha |
Lawn tractor | |
Original price was $2,895 in 1991 | |
Yamaha YT3600 Engine | |
|---|---|
12HP Yamaha 358cc 1-cyl gasoline | |
Fuel tank | 2.5 gal
9.5 L |
Engine details ...  | |
Yamaha YT3600 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Front PTO Type | pulley |
Dimensions & Tires | |
|---|---|
Weight | 496 to 514 pounds |
Front tire | 15x6.00-6 |
Rear tire | 18x9.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn Tractors YT3600/YT5700/YT6700/YT6800 published in 1990, by Yamaha | |
YT3600 published in 1988, by Yamaha | |
Riding Mower - Perfection is at the end of the road published in 1989, by Yamaha |
Engine
Engine Detail — 358 cc / 21.9 ci Gasoline
Manufacturer | Yamaha |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 358 cc
21.9 ci |
Bore/Stroke | 3.23x2.68 inches
82 x 68 mm |
Power (gross) | 12 hp
8.9 kW |
Air cleaner | dry |
Compression | 8.5:1 |
Torque | 17.4 lb-ft
23.6 Nm |
Torque RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Yamaha YT3600 Engine | |
|---|---|
 |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Yamaha YT3600 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 18x9.50-8 |
Dimensions | |
|---|---|
Length | 68.9 inches
175 cm |
Width | 48.2 inches
122 cm |
Height | 41.1 inches
104 cm |
Shipping weight | 496 lbs
224 kg |
Operating weight | 514 lbs
233 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade |
38" Mower deck | |
|---|---|
Type | mid-mount Yamaha |
2-blade | |
Cutting width | 38 inches
96 cm |
Cut height | 1.5 to 4 inch
3 to 10 cm |
Photos

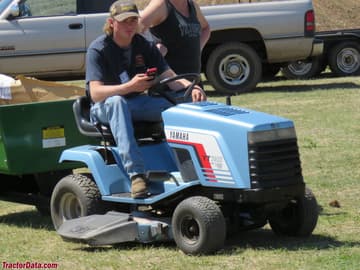

Yamaha YT3600
Yamaha YT3600
Yamaha YT3600
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yamaha Lawn Tractors Yamaha YT3600.
Estimated Continuous Field Runtime: 4 hrs
Approximately 4 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).
Estimated 75% Load Fuel Burn~0.6 gal/hr (2.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yamaha Lawn Tractors Yamaha YT3600 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yamaha Lawn Tractors Yamaha YT3600.
Converted Equivalents:
Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
