Yanmar 223

The Yanmar 223 is a tractor produced by Yanmar. It is equipped with a 60.6 ci 1.0 L engine. The listed engine power is Diesel (net): 19.4 hp / 14.5 kW; Diesel (gross): 21.5 hp / 16.0 kW. Transmission: infinite forward and reverse (2-range). Drive type: shaft. Operating weight: 677 lbs 307 kg.

Overview

	2022 - SA SeriesSub-Compact Utility tractor
2022 -
SA Series
Sub-Compact Utility tractor

Production
Manufacturer	Yanmar
Sub-Compact Utility tractor

Yanmar 223 Engine
Yanmar 1.0L 3-cyl diesel
Fuel tank	6.1 gal 23.1 L
Engine details ...

Yanmar 223 Transmission
hydrostatic
Transmission details ...

Yanmar 223 Power
Engine (gross)	21.5 hp 16.0 kW
Engine (net)	19.4 hp 14.5 kW
PTO (claimed)	15.6 hp 11.6 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pressure	1891 psi 130.4 bar
Pump flow	4.3 gpm 16.3 lpm
Steering flow	3.7 gpm 14.0 lpm

Tractor hitch
Rear Type	I (Limited)
Control	position control
Rear lift (at 24"/610mm)	660 lbs 299 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	540 (1.375)
Engine RPM	554@3200
Mid PTO	independent
Mid PTO Type	16/32 15T
Engine RPM	2057@3200

Dimensions & Tires
Wheelbase	57.9 inches 147 cm
Weight	1537 lbs 697 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	540
Battery volts	12

References

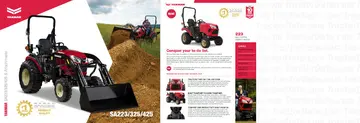

SA223/325/425 published in 2022, by Yanmar
223 Multi-Purpose Compact Tractor published in 2022, by Yanmar*
*Publication contains known errors.

Engine

Engine Detail — 60.6 ci / 1.0 L Diesel

Manufacturer	Yanmar 3TNM74F
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled inline
Displacement	60.6 ci 1.0 L
Bore/Stroke	2.92x3.03 inches 74 x 77 mm
Power (net)	19.4 hp 14.5 kW
Power (gross)	21.5 hp 16.0 kW
Rated RPM	3200
Torque	39.4 lb-ft 53.4 Nm
Starter	electric
Starter volts	12
Oil capacity	3.1 qts 2.9 L
Coolant capacity	3.0 qts 2.8 L

Transmission

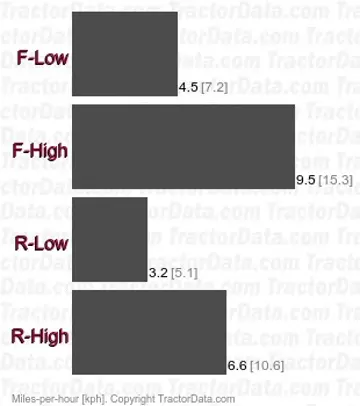

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	16.4 qts 15.5 L

Dimensions

Yanmar 223 Tires
Lawn/turf front	18x8.50-10
Lawn/turf rear	26x12.0-12
Industrial front	18x8.50-10
Industrial rear	26x12.0-12

Dimensions
Wheelbase	57.9 inches 147 cm
Length	102.1 inches 259 cm
Width	47.3 inches 120 cm
Height (steering wheel)	51.1 inches 129 cm
Height (ROPS)	82.3 inches 209 cm
Height (Folded ROPS)	66.3 inches 168 cm
Weight	1537 lbs 697 kg
Ground clearance	6.4 inches 16 cm
Front tread	35.2 inches 89 cm
Rear tread	35.2 inches 89 cm

Attachments

Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Yanmar M60
	3-blade
Cutting width	60 inches 152 cm
Drive	shaft
Weight	283.8 lbs 128 kg
Cut height	1 to 4 inch 2 to 10 cm

Yanmar B65 Backhoe
Backhoe type	Yanmar B65 Backhoe
Weight	677 lbs 307 kg
2-Foot flat digging depth	78.4 inches 199 cm
Reach from pivot	102.1 inches 259 cm
Loading height	60 inches 152 cm
Bucket Rotation	180°
Swing Arc	150°
Bucket force	2800 lbs 1270 kg
Dipperstick force	1590 lbs 721 kg

Photos

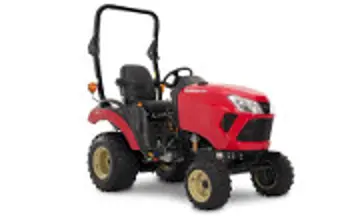

Yanmar 223 tractor photo
