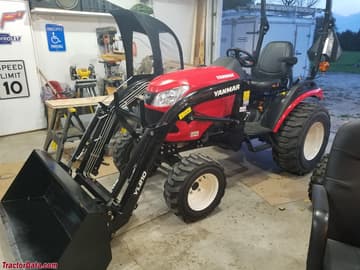

yanmar 324
![]() | 2014 - 2022
SA SeriesSub-Compact Utility tractor | 2014 - 2022 | SA Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2014 - 2022 | ||||
SA Series | ||||
Sub-Compact Utility tractor | ||||
2014 - 2022 | |
|---|---|
SA Series | |
Sub-Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Yanmar |
Sub-Compact Utility tractor | |
Yanmar 324 Engine | |
|---|---|
Yanmar 1.3L 3-cyl diesel | |
Engine details ... |
Yanmar 324 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Yanmar 324 Power | |
|---|---|
Engine (gross) | 23.9 hp
17.8 kW |
Engine (net) | 21.7 hp
16.2 kW |
PTO (claimed) | 18.1 hp
13.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Photos | |
|---|---|
![]() | |
Yanmar 324 photos... |
Capacity | |
|---|---|
Fuel | 6 gal
22.7 L |
Front axle | 3.2 qts
3.0 L |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2429 psi
167.5 bar |
Pump flow | 4.3 gpm
16.3 lpm |
Steering flow | 3.7 gpm
14.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | I (limited) |
Control | position control |
Rear lift (at 24"/610mm) | 1209 lbs
548 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic |
Rear PTO Type | 540 (1.375) |
Engine RPM | 554@3200 |
Mid PTO | independent |
Clutch | 2057:3200 |
Mid PTO Type | 2000 (1.0) |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Weight | 1715 lbs
777 kg |
Full dimensions and tires ... | |
Yanmar 324 attachments | |
|---|---|
60" mid-mount mower deck | |
front-end loader | |
Attachment details ... |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 540 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
SA221/324/424 published in 2019, by Yanmar |
