Yanmar F395
The Yanmar F395 is a tractor produced by Yanmar. It is equipped with a 116.3 ci 1.9 L engine. The rated power output is 38.5 hp 28.7 kW. Transmission: 24 forward and reverse. Operating weight: 3946 lbs 1789 kg.
Engine Power
38.5 hp
28.7 kW
Fuel & Capacities
13.2 gal
50.0 L
Transmission
24 forward and reverse
Operating Weight
3946 lbs
1789 kg
Yanmar F395 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1998
Power Forte SeriesUtility tractor |
|---|---|
1989 - 1998 | |
Power Forte Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Yanmar |
Utility tractor | |
Yanmar F395 Engine | |
|---|---|
Yanmar 1.9L 4-cyl diesel | |
Fuel tank | 13.2 gal
50.0 L |
Engine details ...  | |
Yanmar F395 Power | |
|---|---|
Engine | 38.5 hp
28.7 kW |
PTO (claimed) | 34.9 hp
26.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Four-post ROPS. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 8.3 gpm
31.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 549@2600 |
676@2600 | |
798@2600 | |
1009@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 73.6 inches
186 cm |
Weight | 3946 lbs
1789 kg |
Front tire | 8-18 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 40 |
Battery volts | 12 |
Battery AH | 110 |
Engine
Engine Detail — 116.3 ci / 1.9 L Diesel
Manufacturer | Yanmar 4TN84 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 116.3 ci
1.9 L |
Bore/Stroke | 3.31x3.39 inches
84 x 86 mm |
Power | 38.5 hp
28.7 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 5.6 qts
5.3 L |
Coolant capacity | 6.3 qts
6.0 L |
Transmission
Transmission options | |
|---|---|
9-speed | |
24-speed shuttle |
Transmission — 9 forward and 3 reverse
Gears | 9 forward and 3 reverse |
Three gears, plus reverse, in three ranges. Additional creeper doubles the number of available gears. | |
 | |

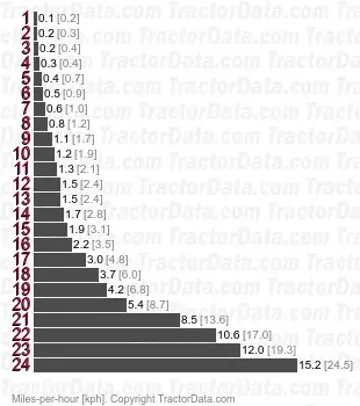

Transmission — 24 forward and reverse shuttle
Type | shuttle |
Gears | 24 forward and reverse |
Clutch | Reverse speeds are 8% slower than forward. |
 | |
Dimensions
Yanmar F395 Tires | |
|---|---|
Standard tires (ag) | Front: 8-18. Rear: 12.4-28 |
Dimensions | |
|---|---|
Wheelbase | 73.6 inches
186 cm |
Length | 137.8 inches
350 cm |
Width | 63 inches
160 cm |
Height | 92.5 inches
234 cm |
Weight | 3946 lbs
1789 kg |
Ground clearance | 13.6 inches
34 cm |
Front tread | 52.6 inches
133 cm |
Rear tread | 49.2 inches
124 cm |
Photos
Yanmar F395 tractor photo
