Yard-Man 13705

The Yard-Man 13705 is a tractor produced by Yard Man Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: 7 forward and 1 reverse. Operating weight: 619 lbs 280 kg.

Overview

	1985 Lawn tractor

Production
Manufacturer	Yard-Man (a part of MTD)
Lawn tractor

Yard-Man 13705 Engine
14HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank	3 gal 11.4 L
Engine details ...

Yard-Man 13705 Transmission
7-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	619 lbs 280 kg
Front tire	15.00x6.00
Rear tire	18.00x9.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Yard-Man Lawn & Garden Equipment published in 1984

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer	Briggs & Stratton 400000
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
Displacement	655 cc 40 ci
Bore/Stroke	3.44x2.16 inches 87 x 55 mm
Power	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 7 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	7 forward and 1 reverse

Dimensions

Yard-Man 13705 Tires
Lawn/turf front	15.00x6.00
Lawn/turf rear	18.00x9.50

Dimensions
Weight	619 lbs 280 kg

Attachments

Attachment overview
44" mid-mount mower deck
Snowblower
Blade

44" Mower deck
Type	mid-mount Yard-Man
	2-blade
Cutting width	44 inches 111 cm

Photos

Yard-Man 13705 lawn tractor with mower deck.

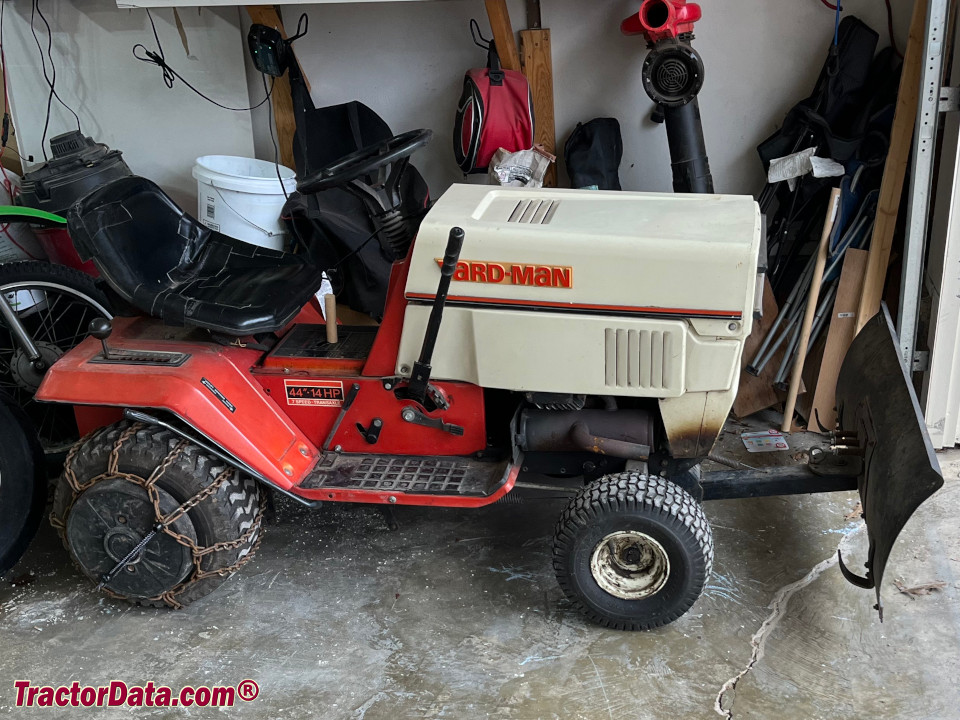

Yard-Man 13705 with front blade.
