Yard-Man 3170 Mustang
The Yard-Man 3170 Mustang is a tractor produced by Yard Man Lawn Tractors. It is equipped with a 170 cc 10.4 ci engine. The listed engine power is Gasoline (gross): 4 hp / 3.0 kW. Transmission: 1 forward and reverse.
Engine Power
Gasoline (gross): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1966 - 1972
Model year 1966-19691970-1972
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Yard-Man |
Riding lawn mower | |
Built in Jackson, Michigan, USA | |
Yard-Man 3170 Engine | |
|---|---|
4HP Briggs & Stratton 170cc 1-cyl gasoline | |
Engine details ...  |
Yard-Man 3170 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Front tire | 10x2.75 |
Rear tire | 13x4.00 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Power equipment to serve you every season published in 1970, by Yard-Man | |
Operating Instructions Model 3170-0 (0611-429) | |
Operating Instructions Model 3170-1 (0611-444) | |
Operating Instructions Model 3170-2 (0611-453) | |
Operating Instructions Model 3170-3 (0611-484) |
Engine
Engine Detail — 170 cc / 10.4 ci Gasoline
Manufacturer | Briggs & Stratton 100902 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 170 cc
10.4 ci |
Bore/Stroke | 2.50x2.125 inches
64 x 54 mm |
Power (gross) | 4 hp
3.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
Dimensions
Yard-Man 3170 Tires | |
|---|---|
Lawn/turf front | 10x2.75 |
Lawn/turf rear | 13x4.00 |
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
25" mid-mount mower deck | |
Blade |
25" Mower deck | |
|---|---|
Type | mid-mount Yard-Man |
1-blade with manual lift | |
Cutting width | 25 inches
63 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

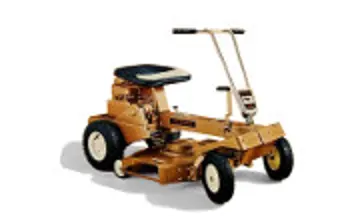

Yard-Man 3170 Mustang tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Yard Man Lawn Tractors Yard-Man 3170 Mustang.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Yard Man Lawn Tractors Yard-Man 3170 Mustang Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Yard Man Lawn Tractors Yard-Man 3170 Mustang.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
