YTO X1304

The YTO X1304 is a tractor produced by Yto. The listed engine power is Diesel (listed): 128.2 hp / 95.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 10,140 lbs 4599 kg.

Engine Power
Diesel (listed): 128.2 hp / 95.6 kW
Transmission
12 forward and 4 reverse
Operating Weight
10,140 lbs 4599 kg

Overview

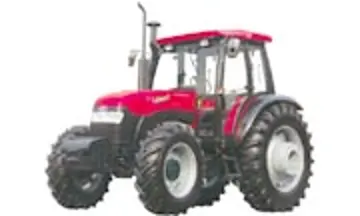

YTO X1304 tractor photo
Production
Manufacturer
YTO
Built in Luoyang, Henan Province, China
YTO X1304 Engine
YTO 6-cyl diesel
Engine details ...
YTO X1304 Transmission
12-speed
Transmission details ...
YTO X1304 Power
Engine
128.2 hp 95.6 kW
Mechanical
Four-wheel drive
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/720
Dimensions & Tires
Wheelbase
15.8 inches 40 cm
Weight
10,140 lbs 4599 kg
Front tire
14.9-26
Rear tire
18.4-38
Full dimensions and tires ...

Engine

Engine Detail — Diesel

Manufacturer
YTO LR6108ZT52
Configuration
turbo diesel, 6-cylinder, liquid-cooled
Power
128.2 hp 95.6 kW
Rated RPM
2400

Transmission

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse

Dimensions

YTO X1304 Tires
Ag front
14.9-26
Ag rear
18.4-38
Dimensions
Wheelbase
15.8 inches 40 cm
Length
192.9 inches 489 cm
Width
91.7 inches 232 cm
Height
116.5 inches 295 cm
Weight
10,140 lbs 4599 kg
Ground clearance
18.4 inches 46 cm

Photos

YTO X1304

YTO X1304

Recommended Implements & Sizing Guide

Engineering recommendations for Yto X1304 based on its 128.2 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)Heavy DutyHeavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing
10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼Heavy DutyWide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机Heavy DutyHigh density baling; requires minimum 85 PTO HP.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Yto X1304.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Yto X1304 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Yto X1304.

Converted Equivalents:

Horsepower (HP)128.2 hp
Kilowatts (kW)95.6 kW
Metric Horsepower (PS / CV)130 PS

Direct Competitor Comparison

Compare YTO X1304 against same-era industry alternatives in the same horsepower class.

Current Model
Yto

YTO X1304

Engine Power:Diesel (listed): 128.2 hp / 95.6 kW
★ Baseline Reference
FordMarket Competitor

Ford 8000

Engine Power:115.5
Production Years:1968 - 1972
International HarvesterMarket Competitor

International Harvester Hydro 186

Engine Power:115.6
Production Years:1976 - 1981
Massey FergusonMarket Competitor

Massey Ferguson 4370

Engine Power:116
Production Years:2001 - 2003
Deutz-FahrMarket Competitor

Deutz-Fahr Agrotron 115

Engine Power:116
Production Years:1998 - 2001
