Zetor 10050

The Zetor 10050 is a tractor produced by Zetor. It is equipped with a 254 ci 4.2 L engine. The rated power output is 48 gal 181.7 L. Transmission: 24 forward and reverse. Operating weight: 8570 to 9000 pounds.

Overview

	2008 - 2011 Silver Series
2008 - 2011
Silver Series

Production
Manufacturer	Zetor
Built in Brno, Czech Republic

Zetor 10050 Engine
Zetor 4.2L 4-cyl diesel
Mech shuttle Fuel tank	40 gal 151.4 L
Power shuttle Fuel tank	48 gal 181.7 L
Engine details ...

Zetor 10050 Power
Engine (gross)	100 hp 74.6 kW
Engine (net)	96 hp 71.6 kW
PTO (claimed)	89 hp 66.4 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
	limited-slip front
Power steering
Hydraulic wet disc brakes
Cab standard with air-condtioning.

Hydraulics
Type	open center
Pressure	2900 psi 200.0 bar
Valves	3
SCV flow	14 gpm 53.0 lpm
Total flow	20 gpm 75.7 lpm
Steering flow	6 gpm 22.7 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift (at ends)	7600 lbs 3447 kg
	9150 lbsOptOptional 4150 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Mech shuttle Wheelbase	92 inches 233 cm
Power shuttle Wheelbase	96 inches 243 cm
Weight	8570 to 9000 pounds
Front tire	13.6R24
Rear tire	18.4R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Charging volts	12
Battery CCA	950
Battery volts	12

Engine

Engine Detail — 254 ci / 4.2 L Diesel

Manufacturer	Zetor
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	254 ci 4.2 L
Bore/Stroke	4.13x4.72 inches 105 x 120 mm
Power (net)	96 hp 71.6 kW
Power (gross)	100 hp 74.6 kW
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed two-speed power shift
24-speed three-speed power shift

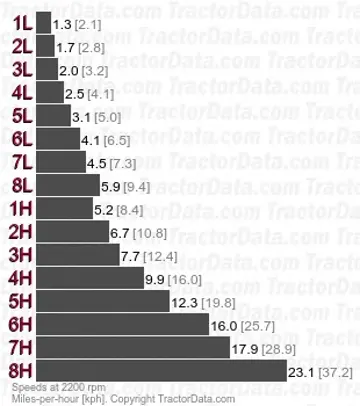

Transmission — 16 forward and reverse two-speed power shift

Type	two-speed power shift
Gears	16 forward and reverse
Clutch	304.8mm hydraulic cerametallic disc
Synchronized transmission with two-speed push-button power shift and synchronized shuttle.
With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

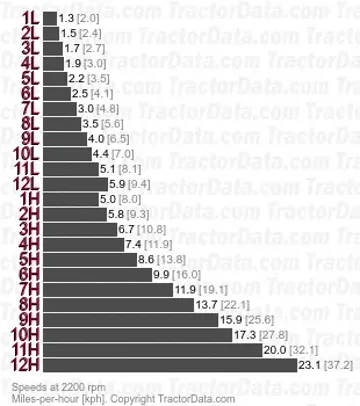

Transmission — 24 forward and reverse three-speed power shift

Type	three-speed power shift
Gears	24 forward and reverse
Clutch	wet disc
Synchronized transmission with three-speed push-button power shift and power shuttle. Electric declutch button.
With 18.4R34 rear tires. Reverse speeds are 6% faster than forward.

Dimensions

Zetor 10050 Tires
Standard tires (ag)	Front: 13.6R24. Rear: 18.4R34

Dimensions
Mech shuttle Wheelbase	92 inches 233 cm
Power shuttle Wheelbase	96 inches 243 cm
Mech shuttle Length	153 inches 388 cm
Power shuttle Length	157 inches 398 cm
Width	78 inches*Minimum width 198 cm
Height (cab)	106 inches 269 cm
Mech shuttle Weight	8570 lbs 3887 kg
Power shuttle Weight	9000 lbs 4082 kg
Ground clearance	18 inches 45 cm
Front tread	59 to 77 inches 149 to 195 cm
Rear tread	59 to 71 inches 149 to 180 cm

Attachments

Attachment overview
Zetor 120K loader
Zetor 120SLi loader

Photos

Zetor 10050 tractor photo
