Zetor 10111
The Zetor 10111 is a tractor produced by Zetor. It is equipped with a 278.4 ci 4.6 L engine. Transmission: 16 forward and 8 reverse. Operating weight: 8775 lbs 3980 kg.
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and 8 reverse
Operating Weight
8775 lbs
3980 kg
Zetor 10111 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1991
Row-Crop tractor |
|---|---|
1985 - 1991 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Original price was $19,500 in 1991 | |
Variants | |
|---|---|
10111 | 2WD |
10145 | 4WD |
Zetor 10111 Engine | |
|---|---|
Zetor 4.6L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Zetor 10111 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Zetor 10111 Power | |
|---|---|
PTO (claimed) | 88 hp
65.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Hydraulic disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2270 psi
156.5 bar |
Valves | 2 |
Pump flow | 10.85 gpm
41.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7340 lbs
3329 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.9 inches
238 cm |
Weight | 8775 lbs
3980 kg |
Front tire | 7.50-20 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 278.4 ci / 4.6 L Diesel
Manufacturer | Zetor 8002.1 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 278.4 ci
4.6 L |
Bore/Stroke | 4.331x4.724 inches
110 x 120 mm |
Rated RPM | 2200 |
Starter type | electric |
Coolant capacity | 19 qts
18.0 L |
Transmission

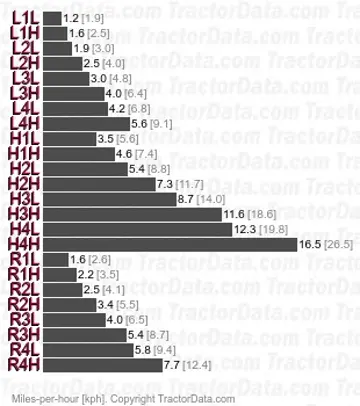

Transmission — 16 forward and 8 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Four gears in two ranges, plus reverse range, with two-speed torque multiplier shift. | |
With 16.9-38 rear tires. | |
 | |
Dimensions
Zetor 10111 Tires | |
|---|---|
Standard tires (ag) | Front: 7.50-20. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 93.9 inches
238 cm |
Length | 156.7 inches
398 cm |
Width | 76.8 inches
195 cm |
Height (cab) | 104.1 inches
264 cm |
Height (exhaust) | 103.4 inches
262 cm |
Weight | 8775 lbs
3980 kg |
Front tread | 53.15 to 70.87 inches
135 to 180 cm |
Rear tread | 59.06 to 73.82 inches
150 to 187 cm |
