Zetor 10145
The Zetor 10145 is a tractor produced by Zetor. It is equipped with a 278.4 ci 4.6 L engine. Transmission: 16 forward and 8 reverse. Operating weight: 9524 lbs 4320 kg.
Fuel & Capacities
33 gal
124.9 L
Transmission
16 forward and 8 reverse
Operating Weight
9524 lbs
4320 kg
Overview
 | 1985 - 1991
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czechoslovakia | |
Original price was $24,000 in 1991 | |
Variants | |
|---|---|
10111 | 2WD |
10145 | 4WD |
Zetor 10145 Engine | |
|---|---|
Zetor 4.6L 4-cyl diesel | |
Fuel tank | 33 gal
124.9 L |
Engine details ...  | |
Zetor 10145 Transmission | |
|---|---|
16-speed two-speed power shift | |
Transmission details ...  |
Zetor 10145 Power | |
|---|---|
PTO (claimed) | 88 hp
65.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic disc brakes | |
Cab standard. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2270 psi
156.5 bar |
Valves | 2 |
Pump flow | 10.85 gpm
41.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 7340 lbs
3329 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.9 inches
238 cm |
Weight | 9524 lbs
4320 kg |
Front tire | 12.4/11-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 278.4 ci / 4.6 L Diesel
Manufacturer | Zetor 8002.1 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 278.4 ci
4.6 L |
Bore/Stroke | 4.331x4.724 inches
110 x 120 mm |
Rated RPM | 2200 |
Starter type | electric |
Coolant capacity | 19 qts
18.0 L |
Transmission
Transmission — 16 forward and 8 reverse two-speed power shift
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Four gears in two ranges, plus reverse range, with two-speed torque multiplier shift. | |
With 16.9-38 rear tires. | |
 | |
Dimensions
Zetor 10145 Tires | |
|---|---|
Standard tires (ag) | Front: 12.4/11-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 93.9 inches
238 cm |
Length | 156.7 inches
398 cm |
Width | 76.8 inches
195 cm |
Height (cab) | 104.1 inches
264 cm |
Height (exhaust) | 103.4 inches
262 cm |
Weight | 9524 lbs
4320 kg |
Front tread | 62.99 to 70.87 inches
159 to 180 cm |
Rear tread | 59.06 to 73.82 inches
150 to 187 cm |
Photos

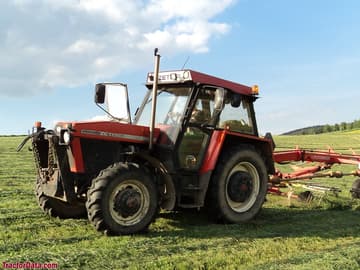

Zetor 10145
