Zetor 10741
The Zetor 10741 is a tractor produced by Zetor. It is equipped with a 253.6 ci 4.2 L engine. The rated power output is 101 hp 75.3 kW. Transmission: 24 forward and 18 reverse. Operating weight: 9500 lbs 4309 kg.
Engine Power
101 hp
75.3 kW
Fuel & Capacities
48 gal
181.7 L
Transmission
24 forward and 18 reverse
Operating Weight
9500 lbs
4309 kg
Zetor 10741 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004 - 2007 | 2004 - 2007 |
|---|
Production | |
|---|---|
Manufacturer | Zetor |
Built in Brno, Czechoslovakia | |
Zetor 10741 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Fuel tank | 48 gal
181.7 L |
Engine details ...  | |
Zetor 10741 Transmission | |
|---|---|
24-speed three-speed power shift | |
Transmission details ...  |
Zetor 10741 Power | |
|---|---|
Engine | 101 hp
75.3 kW |
PTO (claimed) | 91 hp
67.9 kW |
Drawbar (tested) | 72.7 hp
54.2 kW |
PTO (tested) | 92.8 hp
69.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2700 psi
186.2 bar |
Valves | 3 |
Pump flow | 19 gpm
71.9 lpm |
Total flow | 25 gpm
94.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift (at ends) | 10800 lbs
4898 kg |
Rear lift (at 24"/610mm) | 9300 lbs
4218 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 94 inches
238 cm |
Weight | 9500 lbs
4309 kg |
Front tire | 14.9-24 |
Rear tire | 18.4R-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 70 |
Battery CCA | 800 |
Battery volts | 12 |
Engine
Engine Detail — 253.6 ci / 4.2 L Diesel
Manufacturer | Zetor |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 253.6 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 101 hp
75.3 kW |
Compression | 17.0:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission

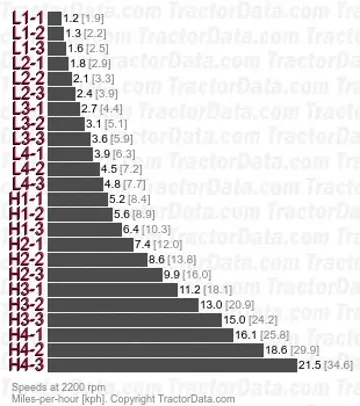

Transmission — 24 forward and 18 reverse three-speed power shift
Type | three-speed power shift |
Gears | 24 forward and 18 reverse |
Clutch | 330.2mm hydraulic cerametallic disc |
Three power shift gears (1-3) in four gear sets (1-4) with a two-speed (low/high) range selector. | |
With 18.4R38 rear tires. Reverse speeds are 15% faster than forward. | |
 | |
Dimensions
Zetor 10741 Tires | |
|---|---|
Ag front | 14.9-24 |
Ag rear | 18.4R-38 |
Dimensions | |
|---|---|
Wheelbase | 94 inches
238 cm |
Length | 170 inches
431 cm |
Width | 87 inches
220 cm |
Height (cab) | 109 inches
276 cm |
Weight | 9500 lbs
4309 kg |
Ground clearance | 19 inches
48 cm |
Front tread | 67.5 to 80 inches
171 to 203 cm |
Rear tread | 62 to 71 inches
157 to 180 cm |
Tests
OCED Tractor Test 1774 | |
|---|---|
Diesel 24-speed 4WD
March 1998 - June 1998,
Link: OCED Tractor Test 1774 file | |
PTO performance | |
Max power | 92.8 hp
69.2 kW |
Fuel use | 5.9 gal/hour
22.3 l/hour |
Power at rated engine speed | 88.0 hp
65.6 kW |
Fuel use | 5.8 gal/hour
22.0 l/hour |
Power at rated PTO speed | 91.3 hp
68.1 kW |
Fuel use | 5.5 gal/hour
20.8 l/hour |
Drawbar performance | |
Max power | 72.7 hp
54.2 kW |
Fuel use | 5.5 gal/hour
20.8 l/hour |
Max pull | 7890 lbs
3578 kg |
Attachments
Attachment overview | |
|---|---|

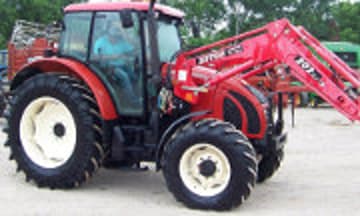

Zetor 202SL loader | |
Zetor 202SLX loader |
Photos

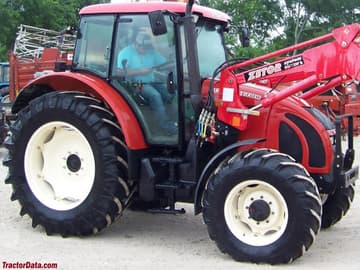

Zetor 10741
