Zetor 14245

The Zetor 14245 is a tractor produced by Zetor. It is equipped with a 417.5 ci 6.8 L engine. The rated power output is 140 hp 104.4 kW. Transmission: 16 forward and 8 reverse. Operating weight: 11160 lbs 5062 kg.

Overview

	1990 - 1997 Row-Crop tractor
1990 - 1997
Row-Crop tractor

Production
Manufacturer	Zetor
Row-Crop tractor
Built in Brno, Czechoslovakia

Zetor 14245 Engine
Zetor 6.8L 6-cyl diesel
Engine details ...

Zetor 14245 Transmission
16-speed synchromesh
Transmission details ...

Zetor 14245 Power
Engine	140 hp 104.4 kW
PTO (claimed)	125 hp 93.2 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic dry disc brakes
Cab standard with heat. Air-conditioning optional.

Hydraulics
Type	open center
Pressure	2741 psi 189.0 bar
Total flow	11.1 gpm 42.0 lpm

Tractor hitch
Rear Type	II
Rear lift	11020 lbs 4998 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Weight	11160 lbs 5062 kg
Front tire	14.9x24
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	55

References
14245 published by Zetor

Engine

Engine Detail — 417.5 ci / 6.8 L Diesel

Manufacturer	Zetor Z 8602.13
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	417.5 ci 6.8 L
Bore/Stroke	4.33x4.72 inches 110 x 120 mm
Power	140 hp 104.4 kW
Rated RPM	2200
Starter type	electric

Transmission

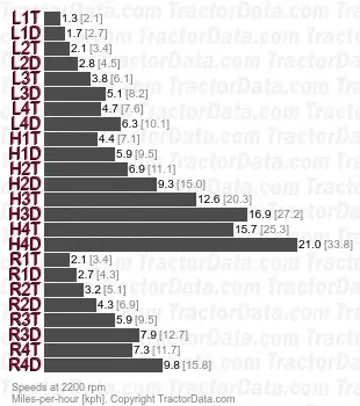

Transmission — 16 forward and 8 reverse synchromesh

Type	synchromesh
Gears	16 forward and 8 reverse
Clutch	380mm hydraulic dry disc
Four gears (1-4) in two ranges (low-high) with direct-drive and torque multiplier.
With 18.4x34 rear tires.

Dimensions

Zetor 14245 Tires
Standard tires (ag)	Front: 14.9x24. Rear: 18.4x38

Dimensions
Length	183.7 inches 466 cm
Width	86.2 inches 218 cm
Height (cab)	107.5 inches 273 cm
Height (exhaust)	114.2 inches 290 cm
Weight	11160 lbs 5062 kg
Ballasted weight	13850 lbs 6282 kg
Ground clearance	15 inches 38 cm
Rear tread	59.1 to 73.8 inches 150 to 187 cm

Photos

Zetor 14245 tractor photo
