Zetor 16245

The Zetor 16245 is a tractor produced by Zetor. It is equipped with a 417.5 ci 6.8 L engine. Transmission: synchro mesh. Operating weight: 11500 lbs 5216 kg.

Fuel & Capacities
51.5 gal 194.9 L
Transmission
synchro mesh
Operating Weight
11500 lbs 5216 kg

Zetor 16245 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

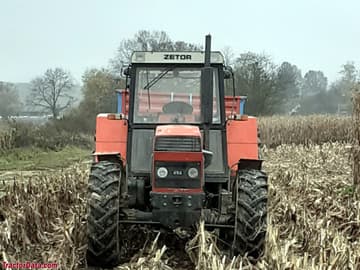

Zetor 16245 tractor photo
1990 - 1997 Row-Crop tractor
1990 - 1997
Row-Crop tractor
Production
Manufacturer
Zetor
Row-Crop tractor
Built in Brno, Czechoslovakia
Original price was $48,000 in 1992
Zetor 16245 Engine
Zetor 6.8L 6-cyl diesel
Fuel tank
51.5 gal 194.9 L
Engine details ...
Zetor 16245 Transmission
12-speed
Transmission details ...
Zetor 16245 Power
PTO (claimed)
135.9 hp 101.3 kW
Mechanical
Four-wheel drive
Power steering
Hydraulic dry disc brakes
Cab standard with heater.
Hydraulics
Type
open center
Valves
2
Pump flow
10.8 gpm 40.9 lpm
Tractor hitch
Rear Type
III/II
Rear lift
8650 lbs 3923 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
106.1 inches 269 cm
Weight
11500 lbs 5216 kg
Front tire
14.9-24
Rear tire
18.4-38
Full dimensions and tires ...

Engine

Engine Detail — 417.5 ci / 6.8 L Diesel

Manufacturer
Zetor
Configuration
turbocharged diesel, 6-cylinder, liquid-cooled
Displacement
417.5 ci 6.8 L
Bore/Stroke
4.33x4.72 inches 110 x 120 mm
Coolant capacity
24 qts 22.7 L

Transmission

Transmission — synchro mesh

Transmission
synchro mesh
Gears
12 forward and 6 reverse

Dimensions

Zetor 16245 Tires
Ag front
14.9-24
Ag rear
18.4-38
Dimensions
Wheelbase
106.1 inches 269 cm
Weight
11500 lbs 5216 kg

Photos

Zetor 16245

Zetor 16245
