Zetor 5320
The Zetor 5320 is a tractor produced by Zetor. It is equipped with a 219.4 ci 3.6 L engine. Transmission: 10 forward and 2 reverse. Operating weight: 6,746 lbs 3059 kg.
Fuel & Capacities
Diesel
Transmission
10 forward and 2 reverse
Operating Weight
6,746 lbs
3059 kg
Zetor 5320 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1995 - 1997 | 1995 - 1997 |
|---|
Production | |
|---|---|
Manufacturer | Zetor |
Variants | |
|---|---|
5320 | 2WD |
5340 | 4WD |
Zetor 5320 Engine | |
|---|---|
Zetor 3.6L 4-cyl diesel | |
Engine details ...  |
Zetor 5320 Transmission | |
|---|---|
10-speed partially synchronized | |
Transmission details ...  |
Zetor 5320 Power | |
|---|---|
PTO (claimed) | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Cab standard with optional radio. |
Hydraulics | |
|---|---|
Pressure | 2,611 psi
180.0 bar |
Total flow | 10.6 gpm
40.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift | 6,407 lbs
2906 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 88.9 inches
225 cm |
Weight | 6,746 lbs
3059 kg |
Front tire | 7.50x16 |
Rear tire | 16.9x30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 55 |
References | |
|---|---|
 | |
5320 - 5340 published in 1994, by Zetor |
Engine

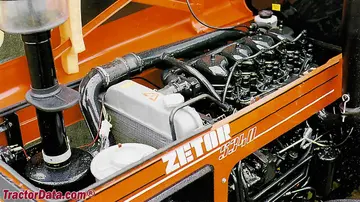

Engine Detail — 219.4 ci / 3.6 L Diesel
Manufacturer | Zetor 7201 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 219.4 ci
3.6 L |
Bore/Stroke | 4.016x4.331 inches
102 x 110 mm |
Rated RPM | 2200 |
Zetor 5320 Engine | |
|---|---|
 |
Transmission
Transmission — 10 forward and 2 reverse partially synchronized
Type | partially synchronized |
Gears | 10 forward and 2 reverse |
Five gears, plus reverse, in high and low ranges. Second through fifth gears are synchronized. | |
With 16.9x30 rear tires. | |
 | |
Dimensions
Zetor 5320 Tires | |
|---|---|
Ag front | 7.50x16 |
Ag rear | 16.9x30 |
Ag front | 6.50x16 |
11.5x15.3 | |
Ag rear | 16.9x28 |
16.9x34 | |
13.6x36 | |
Dimensions | |
|---|---|
Wheelbase | 88.9 inches
225 cm |
Length | 149.6 inches
379 cm |
Width | 72.4 inches
183 cm |
Height (cab) | 104.3 inches
264 cm |
Height (exhaust) | 104.7 inches
265 cm |
Operating weight | 6,746 lbs
3059 kg |
Photos
Zetor 5320. Marketing photo.
