Zetor 5340

The Zetor 5340 is a tractor produced by Zetor. It is equipped with a 219.4 ci 3.6 L engine. Transmission: 10 forward and 2 reverse. Operating weight: 8,223 lbs 3729 kg.

Fuel & Capacities
Diesel
Transmission
10 forward and 2 reverse
Operating Weight
8,223 lbs 3729 kg

Overview

Zetor 5340 tractor photo
1995 - 1997
Production
Manufacturer
Zetor
Variants
5320
2WD
5340
4WD
Zetor 5340 Engine
Zetor 3.6L 4-cyl diesel
Engine details ...
Zetor 5340 Transmission
10-speed partially synchronized
Transmission details ...
Zetor 5340 Power
PTO (claimed)
60 hp 44.7 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Hydraulic dry disc brakes
Cab standard with optional radio.
Hydraulics
Pressure
2,611 psi 180.0 bar
Total flow
10.6 gpm 40.1 lpm
Tractor hitch
Rear Type
II
Rear lift
6,407 lbs 2906 kg
Power Take-off (PTO)
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
87.5 inches 222 cm
Weight
8,223 lbs 3729 kg
Front tire
11.2x24
Rear tire
16.9x30
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
55
References
5340 references literature
5320 - 5340 published in 1994, by Zetor

Engine

Engine Detail — 219.4 ci / 3.6 L Diesel

Manufacturer
Zetor 7201
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
219.4 ci 3.6 L
Bore/Stroke
4.016x4.331 inches 102 x 110 mm
Rated RPM
2200

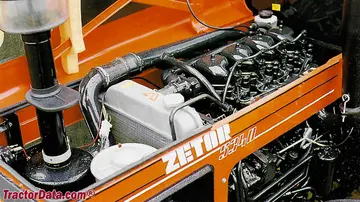

Zetor 5340 Engine
Zetor 5340 engine image

Transmission

Transmission — 10 forward and 2 reverse partially synchronized

Type
partially synchronized
Gears
10 forward and 2 reverse
Five gears, plus reverse, in high and low ranges. Second through fifth gears are synchronized.
With 16.9x30 rear tires.
5340 partially synchronized speeds

Dimensions

Zetor 5340 Tires
Ag front
11.2x24
Ag rear
16.9x30
Ag front
12.4x24
Ag rear
16.9x28
16.9x34
13.6x36
Dimensions
Wheelbase
87.5 inches 222 cm
Length
149.6 inches 379 cm
Width
78 inches 198 cm
Height (cab)
104.3 inches 264 cm
Height (exhaust)
105.9 inches 268 cm
Operating weight
8,223 lbs 3729 kg

Photos

Zetor 5340. Marketing photo.

Zetor 5340. Marketing photo.

Zetor 5340 cab interior. Marketing photo.

Zetor 5340 cab interior. Marketing photo.
