Zetor 9620
The Zetor 9620 is a tractor produced by Zetor. It is equipped with a 254 ci 4.2 L engine. The rated power output is 92 hp 68.6 kW. Transmission: 18 forward and 6 reverse. Operating weight: 7430 lbs 3370 kg.
Engine Power
92 hp
68.6 kW
Fuel & Capacities
28 gal
106.0 L
Transmission
18 forward and 6 reverse
Operating Weight
7430 lbs
3370 kg
Zetor 9620 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 1999
Row-Crop tractor |
|---|---|
1996 - 1999 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Zetor |
Row-Crop tractor | |
Built in Brno, Czech Republic | |
Original price was $35,000 in 1999 | |
Variants | |
|---|---|
9620 | 2WD |
9640 | 4WD |
Zetor 9620 Engine | |
|---|---|
Zetor 4.2L 4-cyl diesel | |
Fuel tank | 28 gal
106.0 L |
Engine details ...  | |
Zetor 9620 Transmission | |
|---|---|
18-speed synchromesh | |
Transmission details ...  |
Zetor 9620 Power | |
|---|---|
Engine | 92 hp
68.6 kW |
PTO (claimed) | 83 hp
61.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | electro-hydraulic rear |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with available air-conditioning. Two-post ROPS available. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2600 psi
179.3 bar |
Valves | 3 |
Pump flow | 16 gpm
60.6 lpm |
Steering flow | 6.5 gpm
24.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 9000 lbs
4082 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | wet disc |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Weight | 7430 lbs
3370 kg |
Front tire | 9.00-16 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 55 |
Battery CCA | 1150 |
Battery volts | 12 |
References | |
|---|---|
 | |
Model 9620/9640 published in 1996, by Zetor |
Engine
Engine Detail — 254 ci / 4.2 L Diesel
Manufacturer | Zetor Z 1001 |
Configuration | turbocharged diesel, 4-cylinder, liquid-cooled |
Displacement | 254 ci
4.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 92 hp
68.6 kW |
Fuel system | direct injection |
Pre-heating | glow plugs |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission

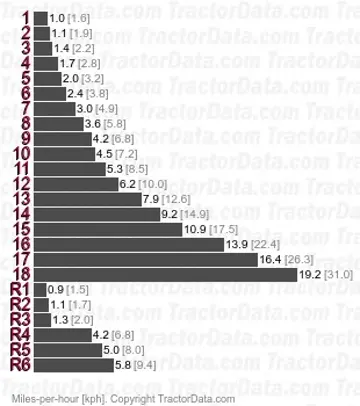

Transmission — 18 forward and 6 reverse synchromesh
Type | synchromesh |
Gears | 18 forward and 6 reverse |
Clutch | 330mm hydraulic dry disc |
Three gears in high/low/reverse ranges with a three-speed torque multiplier. | |
With 16.9-38 rear tires. | |
 | |
Dimensions
Zetor 9620 Tires | |
|---|---|
Ag front | 9.00-16 |
Ag rear | 16.9-38 |
Dimensions | |
|---|---|
Wheelbase | 93.5 inches
237 cm |
Length | 156 inches
396 cm |
Width | 76 inches
193 cm |
Height (cab) | 105 inches
266 cm |
Weight | 7430 lbs
3370 kg |
Ground clearance | 20.5 inches
52 cm |
Front tread | 56 to 71 inches
142 to 180 cm |
Rear tread | 59 to 71 inches
149 to 180 cm |
Photos
Zetor 9620 tractor photo
