allis chalmers lawn tractors 405
 | 1975 - 1979
Riding lawn mower | 1975 - 1979 | Riding lawn mower |
|---|---|---|---|
1975 - 1979 | |||
Riding lawn mower | |||
1975 - 1979 | |
|---|---|
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Allis Chalmers |
Riding lawn mower | |
Built in Port Washington, Wisconsin, USA | |
Original price was $681 in 1979 | |
Variants | |
|---|---|
3005 Wonder Boy | similar Simplicity model |
Allis Chalmers 405 Engine | |
|---|---|
5HP Briggs & Stratton 204cc 1-cyl gasoline | |
Fuel tank | 0.75 gal
2.8 L |
Engine details ...  | |
Allis Chalmers 405 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |

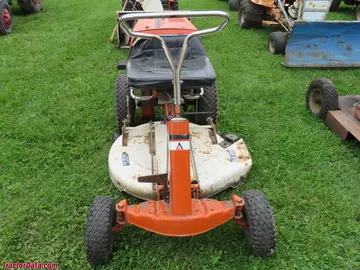

Photos | |
|---|---|
 | |
Allis Chalmers 405 photos...  |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 268 lbs
121 kg |
Front tire | 4.10/3.50x4 |
Rear tire | 16.00/6.50x8 |
Full dimensions and tires ...  | |
Allis Chalmers 405 attachments | |
|---|---|
26" mid-mount mower deck | |
Attachment details ...  |

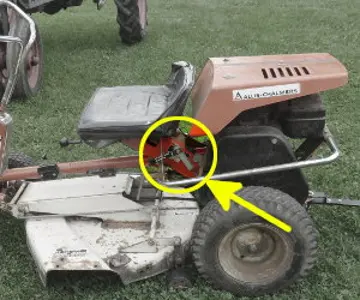

405 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the Allis Chalmers 405 frame, under the seat. |
References | |
|---|---|
 | |
1974 Buyer's Guide published by Allis-Chalmers | |
Allis-Chalmers Lawn and Garden Equipment published in 1975 | |
The Beautiful difference in Lawn and Garden Tractors published in 1976, by Allis-Chalmers | |
Lawn and Garden Tractors published in 1979, by Allis-Chalmers |
