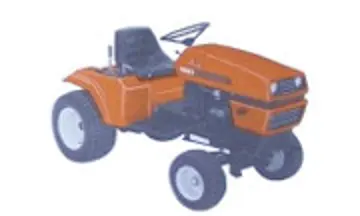

ariens lawn tractors s 12h
![]() | 1976 - 1978
S系列花园拖拉机 | 1976 - 1978 | S 系列 | 花园拖拉机 |
|---|---|---|---|---|
1976 - 1978 | ||||
S 系列 | ||||
花园拖拉机 | ||||
1976 - 1978 | |
|---|---|
S 系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | 艾瑞恩斯 |
花园拖拉机 | |
在美国威斯康星州的布里利昂建造 | |
型号 |
|---|
艾伦斯 S-12H 发动机 | |
|---|---|
12马力科勒476cc 1缸汽油 | |
燃油箱 | 4.5 加仑
17.0 升 |
发动机详情... | |
艾瑞恩S-12H变速器 | |
|---|---|
静液 | |
变速箱详情... |
机械的 | |
|---|---|
两轮驱动 | |
转向 | 手动 |
鼓式刹车 | |
打开操作员站位。 | |
拖拉机挂钩 | |
|---|---|
后类型 | 0 可选 |
动力输出 (PTO) | |
|---|---|
前置动力输出 | 独立 |
离合器 | 电动 |
前置 PTO 类型 | 3600 |
尺寸与轮胎 | |
|---|---|
轮距 | 48 英寸
121 厘米 |
重量 | 895 磅
405 公斤 |
前轮胎 | 16x6.50-8 |
后轮胎 | 23x8.50-10 |
完全尺寸和轮胎... | |
艾伦斯 S-12H 附件 | |
|---|---|
42英寸中置式割草机平台 | |
48英寸中置割草机 | |
扫雪机 | |
刀片 | |
前置装载机 | |
附件详情... |
S-12H 的序列号 | |
|---|---|
位置: | 拖拉机车架右侧,前轴上方刻有序列号。 |
电气 | |
|---|---|
地面 | 负面 |
充电系统 | 飞轮交流发电机 |
充电电流 | 十五 |
电池CCA | 二百五十五 |
电池电压 | 12 |
电池安时 | 三十九 |
参考文献 | |
|---|---|
![]() | |
拖拉机功率于 1974 年由 Ariens 出版 | |
1976年由Ariens出版的草坪和花园拖拉机 | |
1977年由Ariens出版的静液传动花园拖拉机 | |
车主手册水力花园拖拉机(31723)于1977年出版 | |
1978年由Ariens出版的静力驱动花园拖拉机 |
