cabelas lm55
 | 2014 - 2016
LM SeriesCompact Utility tractorTYM built | 2014 - 2016 | LM Series | Compact Utility tractor | TYM built |
|---|---|---|---|---|---|
2014 - 2016 | |||||
LM Series | |||||
Compact Utility tractor | |||||
TYM built | |||||
2014 - 2016 | |
|---|---|
LM Series | |
Compact Utility tractor | |
TYM built |
Production | |
|---|---|
Distributor | Cabelas |
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
Original price | $29,499 (2016 gear ROPS ) |
$31,799 (2016 hydro ROPS ) | |
$36,399 (2016 hydro cab ) | |
Variants | |
|---|---|
LM55 | shuttle ROPS |
LM55H | hydrostatic ROPS |
LM55HC | hydrostatic cab |
Cabelas LM55 Engine | |
|---|---|
Yanmar 2.1L 4-cyl diesel | |
Engine details ...  |
Cabelas LM55 Transmissions | |
|---|---|
16-speed synchronized shuttle | |
hydrostatic | |
Transmission details ...  |
Cabelas LM55 Power | |
|---|---|
Engine (gross) | 55.1 hp
41.1 kW |
Gear PTO (claimed) | 44.9 hp
33.5 kW |
Hydro PTO (claimed) | 42.2 hp
31.5 kW |

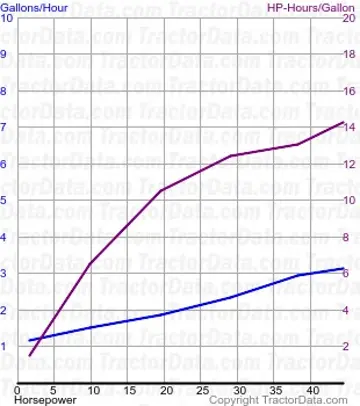

Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. Cab available with air-conditioning. |
Capacity | |
|---|---|
Fuel | 17 gal
64.3 L |
Hydraulic system | 9.25 gal
35.0 L |
Front axle | 10.5 qts
9.9 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 9.25 gal
35.0 L |
Valves | 1 |
Pump flow | 9.5 gpm*Advertised. During testing, actual flow was 9.2 GPM.
36.0 lpm |
Total flow | 14.5 gpm
54.9 lpm |
Steering flow | 5 gpm
18.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 3314 lbs*Advertised. During testing, actual lift was 2633 pounds.
1503 kg |
Rear lift (at 24"/610mm) | 2945 lbs*Advertised. During testing, actual lift was 2472 pounds.
1335 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.2 inches
193 cm |
Weight | 3924 to 4415 pounds |
Front tire | 9.5-16 |
Rear tire | 14.9-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Charging volts | 12 |
Battery volts | 12 |
