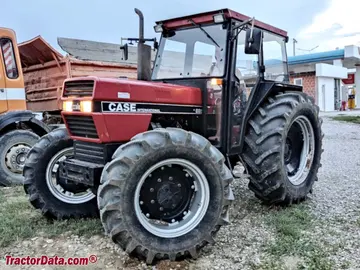

caseih 885

1985 - 1990

85 Utility Series

Utility tractor

85 Utility Series

Utility tractor

Manufacturer

CaseIH

Utility tractor

Built in Doncaster, England

Original price was $25,700 in 1990

Case International 4.4L 4-cyl diesel

8-speed synchro

16-speed two-speed power shift

8-speed shuttle

Engine (gross)

84 hp 62.6 kW

Engine (net)

79 hp 58.9 kW

PTO (claimed)

72 hp 53.7 kW

Two- or four-wheel drive

Final drives

planetary

Power steering

Independent hydraulic wet disc brakes

ROPS available. Cab with heat and air-conditioning optional.

Fuel

20 gal 75.7 L

2WD Hydraulic system

9 gal 34.1 L

4WD Hydraulic system

9.65 gal 36.5 L

Type

open center gear pump

2WD Capacity

9 gal 34.1 L

4WD Capacity

9.65 gal 36.5 L

Pressure

2500 psi 172.4 bar

Valves

1 to 3

Pump flow

15.8 gpm 59.8 lpm

Total flow

15.8 gpm 59.8 lpm



18.6 gpmOptOptional 70.4 lpm

Steering flow

2.5 gpm 9.5 lpm

Rear Type

II

Rear lift (at 24"/610mm)

3260 lbs 1478 kg

Rear PTO

independent dual shaft

Rear PTO Type

540/1000

2WD Wheelbase

88 inches 223 cm

4WD Wheelbase

85.2 inches 216 cm

Weight

6065 to 7849 pounds

Front tire

7.50-18

Rear tire

18.4-30

Location:

Serial number plate on the front-right of the tractor.

1985

15000

1986

18000

1987

19138

1988

22668

1989

27254

1990

30427

FAQ: How to read a serial number table.

Ground

negative

Charging system

Lucas alternator

ROPS Charging amps

45

Cab Charging amps

65

Battery volts

12

Battery AH

93

Model 885 Tractor published in 1986, by CaseIH
