caseih 9280
 | 1990 - 1995
9200 SeriesFour-wheel Drive (4WD) tractor | 1990 - 1995 | 9200 Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1990 - 1995 | ||||
9200 Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1990 - 1995 | |
|---|---|
9200 Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $135,000 in 1995 | |
CaseIH 9280 Engine | |
|---|---|
Cummins 14.0L 6-cyl diesel | |
Engine details ...  |
CaseIH 9280 Transmissions | |
|---|---|

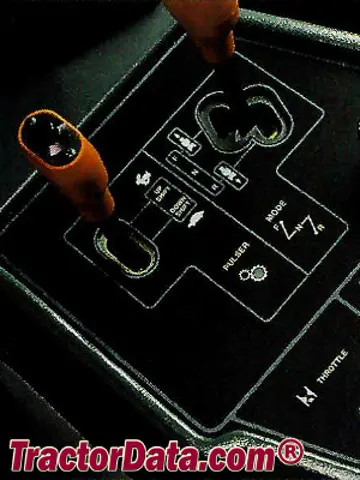

12-speed full power shift | |

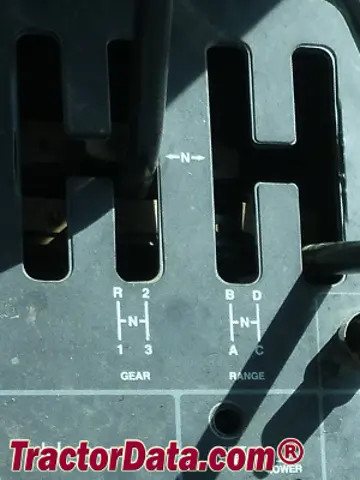

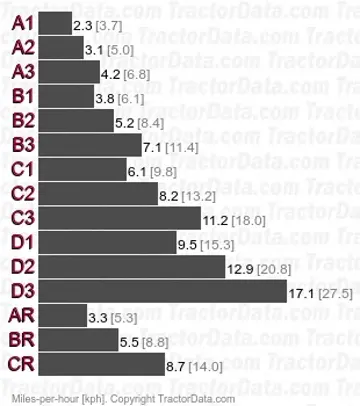

12-speed fully synchronized | |
Transmission details ...  |
CaseIH 9280 Power | |
|---|---|
Engine | 375 hp
279.6 kW |
PTO (claimed) | 344 hp
256.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Cab standard with air-conditioning. Optional deluxe cab adds side and rear window wipers plus internal storage compartments. | |
Capacity | |
|---|---|
Fuel | 250 gal
946.2 L |
Hydraulic system | 26 gal
98.4 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 26 gal
98.4 L |
Pressure | 2500 psi
172.4 bar |
Valves | 4 |
Powershift Total flow | 27 gpm
102.2 lpm |
SyncroShift Total flow | 30 gpm
113.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Rear lift | 14000 lbs
6350 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 141.5 inches
359 cm |
Weight | 29000 lbs
13154 kg |
Front tire | 24.5-32 |
Rear tire | 24.5-32 |
Full dimensions and tires ...  | |
9280 Serial Numbers | |
|---|---|
Location: | Under the left-side steps on front fender |
1990 | JCB0004600 |
1991 | JCB0026501 |
1992 | JCB0028400 |
1993 | JCB0030500 |
1994 | JEE0031773 |
1995 | JEE0032808 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
9200 Series 4WD published in 1993, by CaseIH |
