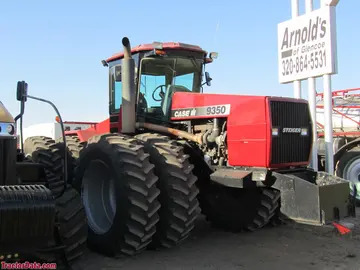

caseih 9350
![]() | 1996 - 1999
9300 系列四轮驱动(4WD)拖拉机 | 1996 - 1999 | 9300系列 | 四轮驱动(4WD)拖拉机 |
|---|---|---|---|---|
1996 - 1999 | ||||
9300系列 | ||||
四轮驱动(4WD)拖拉机 | ||||
1996 - 1999 | |
|---|---|
9300系列 | |
四轮驱动(4WD)拖拉机 |
生产 | |
|---|---|
制造商 | CaseIH |
四轮驱动(4WD)拖拉机 | |
在美国北达科他州法戈建造 | |
原始价格为1999年的125,000美元 | |
CaseIH 9350 发动机 | |
|---|---|
康明斯 10.8 升 6 缸柴油机 | |
燃油箱 | 200 加仑
757.0 升 |
发动机详情... | |

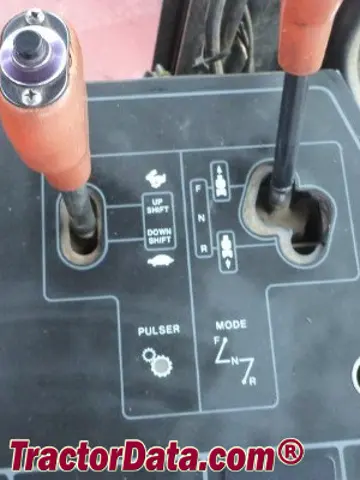

CaseIH 9350 变速箱 | |
|---|---|
12速全功率换挡 | |
12速同步 | |
24速双速动力换挡 | |
变速箱详情... |
CaseIH 9350 动力 | |
|---|---|
发动机 (毛) | 310 马力
231.2 千瓦 |
动力输出(声称) | 266 马力
198.4 千瓦 |
牵引钩(测试) | 246.21 马力
183.6 千瓦 |
动力输出 (已测试) | 284.25 马力
212.0 千瓦 |

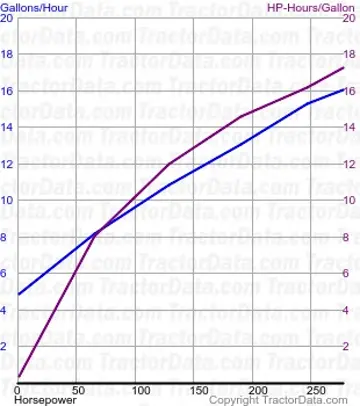

性能测试详情... | |
机械的 | |
|---|---|
四轮驱动 | |
关节式动力转向 | |
液压碟刹 | |
配备空调的标准驾驶室。 |
照片 | |
|---|---|
![]() | |
CaseIH 9350 图片... |
液压 | |
|---|---|
类型 | 闭式中心 |
压力 | 2900 psi
200.0 bar |
阀门 | 4 |
泵流量 | 27 加仑/分钟 (动力换挡)
102.2 升/分钟 |
空白 | 30加仑/分钟(同步换挡)
113.6升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | 三 |
后举升 (24英寸/610毫米) | 14000 磅
6350 公斤 |
动力输出 (PTO) | |
|---|---|
后 PTO | 独立 |
后部动力输出类型 | 一千 |
尺寸与轮胎 | |
|---|---|
轮距 | 137 英寸(行距)
347 厘米 |
空白 | 131 英寸(固定)
332 厘米 |
重量 | 28720到29600磅 |
前轮胎 | 20.8R-38 |
后轮胎 | 20.8R-38 |
完全尺寸和轮胎... | |
电气 | |
|---|---|
地面 | 负面 |
充电系统 | 发电机 |
充电电流 | 125 |
电池 | 3 |
电池CCA | 六百二十五 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
Steiger 9300系列四轮驱动拖拉机于1996年由CaseIH出版 | |
产品洞察:9300 STEIGER 与 Agcostar 8360 和 8425,发表于 1996年 |
