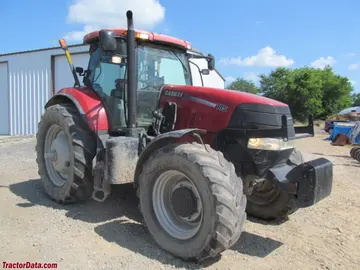

caseih puma 185
 | 2011 - 2025
Model year 2011-20132014-20202021-2025
Puma SeriesRow-Crop tractor | 2011 - 2025 | Model year 2011-20132014-20202021-2025 | Puma Series | Row-Crop tractor |
|---|---|---|---|---|---|
2011 - 2025 | |||||
Model year 2011-20132014-20202021-2025 | |||||
Puma Series | |||||
Row-Crop tractor | |||||
2011 - 2025 | |
|---|---|
Model year 2011-20132014-20202021-2025 | |
Puma Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | CaseIH |
Row-Crop tractor | |
Built in Basildon, England | |
CaseIH Puma 185 Engine | |
|---|---|
FPT 6.7L 6-cyl diesel | |
Engine details ...  |
CaseIH Puma 185 Transmissions | |
|---|---|
18-speed full power shift | |
19-speed full power shift | |
continuously variable transmission (CVT) | |
Transmission details ...  |
CaseIH Puma 185 Power | |
|---|---|
Engine (gross) | 185 hp
138.0 kW |
Engine (max) | 234 hp
174.5 kW |
PTO (claimed) | 155 hp
115.6 kW |
PTO (tested) | 187.5 hp
139.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Cab standard. Optional cab suspension. | |
Photos | |
|---|---|
 | |
CaseIH Puma 185 photos...  |
Capacity | |
|---|---|
Fuel | 104 gal
393.6 L |
Exhaust fluid (DEF) | 13.2 gal
50.0 L |
Hydraulic system | 22 gal
83.3 L |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensating (PFC) |
Capacity | 22 gal
83.3 L |
Rear valves | 3 to 4 (mechanical) |
| 3 to 5 (electronic) |
Pump flow | 32 gpm (powershift)
121.1 lpm |
| 35 gpm (CVT/opt-PS)
132.5 lpm |
| 40 gpm (CVT opt)
151.4 lpm |
Total flow | 49 gpm (powershift)
185.5 lpm |
| 52 gpm (CVT/opt-PS)
196.8 lpm |
| 57 gpm (CVT opt)
215.7 lpm |
Steering flow | 17 gpm
64.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | 2/3N |
Rear lift | 10,200 lbs
4626 kg |
| 13,400 lbs (optional)
6078 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.75) |
| 1000 (1.75) |
| 1000/1000E |
Dimensions & Tires | |
|---|---|
Wheelbase | 113.6 inches
288 cm |
Weight | 18135 lbs
8226 kg |
Full dimensions and tires ...  | |
CaseIH Puma 185 attachments | |
|---|---|
front-end loader | |
Attachment details ...  |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 150 |
| 200 OptOptional |
Battery CCA | 1300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Puma Series Tractors published in 2010, by CaseIH | |
Puma Series Tractors published in 2011, by CaseIH |
