chamberlain 4090
![]() | 1985 - 1986
90系列行作式拖拉机 | 1985 - 1986 | 90系列 | 行作物拖拉机 |
---|---|---|---|---|
1985 - 1986 | ||||
90系列 | ||||
行作物拖拉机 |
1985 - 1986 | |
---|---|
90系列 | |
行作物拖拉机 |
生产 | |
---|---|
制造商 | 张伯伦(约翰·迪尔的一部分) |
行作物拖拉机 | |
建造于澳大利亚威尔士普尔 | |
总建造数 | 510 |
张伯伦 4090 发动机 | |
---|---|
约翰迪尔 5.9L 6缸柴油 | |
发动机详情... ![]() |
张伯伦 4090 变速箱 | |
---|---|
12速部分动力换挡 | |
变速箱详情... ![]() |
张伯伦 4090 动力 | |
---|---|
发动机(净功率) | 100.5 马力
74.9 千瓦 |
动力输出(声称) | 94 马力
70.1 千瓦 |
机械的 | |
---|---|
驱动 | 4x2 二驱 |
空白 | 四轮驱动前轮驱动四轮驱动(可选) |
转向 | 液压动力 |
液压湿式碟刹 | |
配备空调的标准驾驶室。 |
照片 | |
---|---|
![]() | |

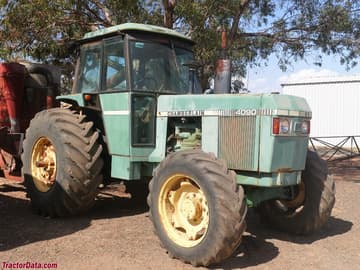

张伯伦4090照片... ![]() |
容量 | |
---|---|
燃料 | 57.3 加仑
216.9 升 |
液压系统 | 7.2 加仑
27.3 升 |
液压 | |
---|---|
类型 | 开式中心 |
容量 | 7.2 加仑
27.3 升 |
压力 | 2500 磅
172.4 巴 |
阀门 | 4 (最大值) |
空白 | 3(带3点联轴器) |
总流量 | 15.6 加仑/分钟
59.0 升/分钟 |
拖拉机挂钩 | |
---|---|
后类型 | 二 |
控制 | 顶连杆感应 |
后举升 (24英寸/610毫米) | 5,355 磅
2429 公斤 |
空白 | 6,517 磅(可选)
2956 公斤 |
动力输出 (PTO) | |
---|---|
后 PTO | 独立 |
离合器 | 液压盘 |
后部动力输出类型 | 540 |
空白 | 1000(可选) |
尺寸与轮胎 | |
---|---|
2WD 固定轴距 | 104.2 英寸
264 厘米 |
空白 | 104.9 英寸 (2WD)
266 厘米 |
空白 | 112.4 英寸 (四轮驱动)
285 厘米 |
重量 | 11671到12302磅 |
前轮胎 | 11.00x16 |
后轮胎 | 23.1x34 (2WD) |
完全尺寸和轮胎... ![]() |
电气 | |
---|---|
充电系统 | 发电机 |
充电电流 | 55 |
电池 | 2 |
电池电压 | 六 |
参考文献 | |
---|---|
![]() | |
全球约翰·迪尔拖拉机,作者:唐·麦克米兰 | |
1985年由Chamberlain出版的90系列拖拉机 |
