deutz allis 9170
![]() | 1989 - 1990
9100 系列行作拖拉机白色制造 | 1989 - 1990 | 9100系列 | 行作物拖拉机 | 白色建造 |
|---|---|---|---|---|---|
1989 - 1990 | |||||
9100系列 | |||||
行作物拖拉机 | |||||
白色建造 | |||||
1989 - 1990 | |
|---|---|
9100系列 | |
行作物拖拉机 | |
白色建造 |
生产 | |
|---|---|
经销商 | 道伊茨-阿利斯 |
制造商 | 白色 |
行作物拖拉机 | |
在美国俄亥俄州冷水建造 | |
道依茨-阿利斯 9170 发动机 | |
|---|---|
道伊茨 9.6L 6缸柴油 | |
燃油箱 | 90 加仑
340.7 升 |
发动机详情... | |
德utz-艾利斯 9170 变速箱 | |
|---|---|

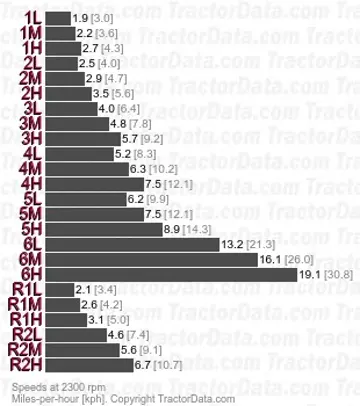

18速部分动力换挡 | |
变速箱详情... |
德utz-阿利斯 9170 动力 | |
|---|---|
动力输出(声称) | 172 马力
128.3 千瓦 |
牵引钩(测试) | 155.86 马力
116.2 千瓦 |
动力输出 (已测试) | 173.37 马力
129.3 千瓦 |
性能测试详情... | |
机械的 | |
|---|---|
二轮或四轮驱动 | |
差速锁 | 前后 |
助力转向 | |
差速器液压湿式盘式制动器 | |
照片 | |
|---|---|
![]() | |

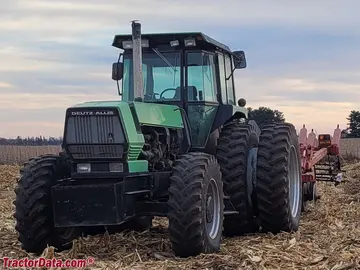

Deutz-Allis 9170 图片... |
液压 | |
|---|---|
类型 | 闭式中心 |
压力 | 2275磅/平方英寸
156.9 巴 |
阀门 | 2 或 3 |
泵流量 | 23 加仑/分钟
87.1 升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | 三/二 |
动力输出 (PTO) | |
|---|---|
后 PTO | 独立 |
后部动力输出类型 | 1000 (1.75) |
发动机转速 | 1000@2168 |
尺寸与轮胎 | |
|---|---|
二轮驱动轮距 | 119 英寸
302 厘米 |
四轮驱动轮距 | 115 英寸
292 厘米 |
重量 | 15640到17465磅 |
前轮胎 | 11.00-16 |
2WD 后轮 | 18.4R38 |
完全尺寸和轮胎... | |
电气 | |
|---|---|
地面 | 负面 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
1988年由Deutz-Allis出版的9150/9170/9190 | |
1991年由Deutz-Allis出版的9100系列拖拉机 |
