ford 2110
 | 1983 - 1987
Ten Compact SeriesCompact Utility tractorShibaura built | 1983 - 1987 | Ten Compact Series | Compact Utility tractor | Shibaura built |
|---|---|---|---|---|---|
1983 - 1987 | |||||
Ten Compact Series | |||||
Compact Utility tractor | |||||
Shibaura built | |||||
1983 - 1987 | |
|---|---|
Ten Compact Series | |
Compact Utility tractor | |
Shibaura built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Japan | |
Original price was $13,200 in 1987 | |
Ford 2110 Engine | |
|---|---|
Shibaura 2.3L 4-cyl diesel | |
Fuel tank | 10.6 gal
40.1 L |
Engine details ...  | |
Ford 2110 Transmissions | |
|---|---|
12-speed unsynchronized gear | |
12-speed partially synchronized | |
Transmission details ...  |
Ford 2110 Power | |
|---|---|
Engine | 38 hp
28.3 kW |
PTO (claimed) | 34.5 hp
25.7 kW |
Drawbar (tested) | 30.10 hp
22.4 kW |
PTO (tested) | 35.11 hp
26.2 kW |

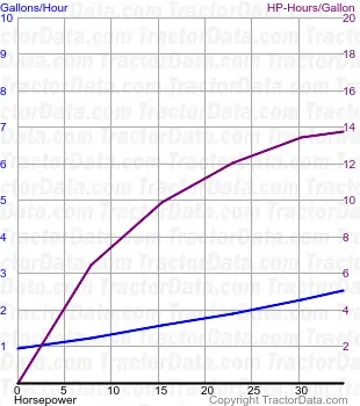

Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | spur gear |
Differential lock | mechanical rear |
Steering | power |
Differential mechanical drum brakes | |
Two-post fixed ROPS. | |
Photos | |
|---|---|
 | |
Ford 2110 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Pump flow | 8.6 gpm
32.6 lpm |
Total flow | 12.1 gpm
45.8 lpm |
Steering flow | 3.5 gpm
13.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at 24"/610mm) | 2013 lbs
913 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2392 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 73.4 inches
186 cm |
4WD Wheelbase | 75.6 inches
192 cm |
Weight | 3635 to 3946 pounds |
Front tire | 6.00-16 |
2WD Rear tire | 13.6-28 |
Full dimensions and tires ...  | |
Ford 2110 attachments | |
|---|---|
snowblower | |
front-end loader | |
backhoe | |
Attachment details ...  |
2110 Serial Number Location | |
|---|---|
 | |
Serial number plate on the left side of the Ford 2110, near the clutch pedal. |
2110 Serial Numbers | |
|---|---|
1983 | UV00001 |
1984 | UV00442 |
1985 | UV02153 |
1986 | UV03580 |
1987 | UV04673 |
FAQ: How to read a serial number table. | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 35 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 100 |
References | |
|---|---|
 | |
Ford Shop Manual by Peter Letourneau | |
Farm Loaders published in 1988, by Ford | |
32-52 hp Tractors published in 1985, by Ford | |
32-52 hp Tractors published in 1986, by Ford | |
32-52 hp Tractors published in 1987, by Ford | |
Salesman's Reference published in 1986, by Ford | |
Sales Reference Guide published in 1986, by Ford |
