ford 3000
 | 1965 - 1975
Utility tractor | 1965 - 1975 | Utility tractor |
|---|---|---|---|
1965 - 1975 | |||
Utility tractor | |||
1965 - 1975 | |
|---|---|
Utility tractor |
Engine options | |
|---|---|
Ford 2.6L 3-cyl gasoline | |
Ford 2.9L 3-cyl diesel |
Engine Detail | |
|---|---|
Ford | |
gasoline | |
3-cylinder | |
liquid-cooled | |
Displacement | 158 ci
2.6 L |
Bore/Stroke | 4.20x3.80 inches
107 x 97 mm |
Power | 46.7 hp
34.8 kW |
Air cleaner | dry |
Compression | 8:1 |
Rated RPM | 2100 |
Torque | 123 lb-ft
166.8 Nm |
Torque RPM | 1350 |
Firing order | 1-2-3 |
Starter volts | 12 |
Coolant capacity | 13.8 qts
13.1 L |
Sparkplug gap | 0.023-0.027 inches
0.584 mm |
Point gap | 0.022-0.028 inches
0.559 mm |

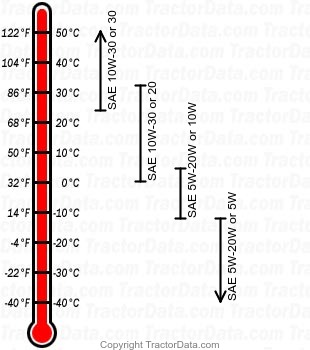

Engine Oil | |
|---|---|
 | |
Oil capacity | 8 qts
7.6 L |
Ford 3000 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Ford | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 175 ci
2.9 L |
Bore/Stroke | 4.20x4.20 inches
107 x 107 mm |
Power | 44.1 hp
32.9 kW |
Air cleaner | oil bath |
Compression | 16.5:1 |
Rated RPM | 2000 |
Torque | 125.7 lb-ft
170.4 Nm |
Torque RPM | 1150 |
Firing order | 1-2-3 |
Engine Oil | |
|---|---|
 | |
Oil capacity | 8 qts
7.6 L |
Ford 3000 Engine | |
|---|---|
 |
