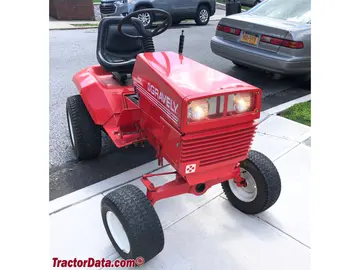

gravely lawn tractors 14 g
 | 1992 - 2000
型号年份 1992-19981999-2000
专业 G 系列花园拖拉机 | 1992 - 2000 | 型号年份 1992-19981999-2000 | 专业 G 系列 | 花园拖拉机 |
|---|---|---|---|---|---|
1992 - 2000 | |||||
型号年份 1992-19981999-2000 | |||||
专业 G 系列 | |||||
花园拖拉机 | |||||
1992 - 2000 | |
|---|---|
型号年份 1992-19981999-2000 | |
专业 G 系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | Gravely |
花园拖拉机 | |
格雷维 14-G 发动机 | |
|---|---|
14马力 Kohler 398cc 1缸汽油 | |
燃油箱 | 5.3 加仑
20.1 升 |
发动机详情...  | |
Gravely 14-G 变速箱 | |
|---|---|
8速变速器 | |
变速箱详情...  |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
机械式带式制动器 | |
打开操作员站位。 |
照片 | |
|---|---|
 | |
Gravely 14-G 图片...  |
尺寸与轮胎 | |
|---|---|
轮距 | 52.3 英寸
132 厘米 |
重量 | 853 磅
386 公斤 |
前轮胎 | 16x6.50-8 |
后轮胎 | 23x8.50-12 |
完全尺寸和轮胎...  | |
Gravely 14-G 配件 | |
|---|---|
40" 中置式割草机平台 | |
50英寸中置割台 | |
扫雪机 | |
刀片 | |
附件详情...  |
电气 | |
|---|---|
地面 | 负面 |
充电电流 | 十五 |
电池电压 | 12 |
电池安时 | 四十二 |
电池组 | 22楼 |
参考文献 | |
|---|---|
 | |
1991年由Gravely出版的骑行拖拉机 | |
操作员手册G系列（53213）于1992年出版 | |
专业服务手册 - G 系列 (26793B) |
