gravely lawn tractors 20 g
![]() | 1988 - 2001
车型年份 1988-19981999-2001
专业G系列花园拖拉机 | 1988 - 2001 | 型号年份 1988-19981999-2001 | 专业 G 系列 | 花园拖拉机 |
|---|---|---|---|---|---|
1988 - 2001 | |||||
型号年份 1988-19981999-2001 | |||||
专业 G 系列 | |||||
花园拖拉机 | |||||
1988 - 2001 | |
|---|---|
型号年份 1988-19981999-2001 | |
专业 G 系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | Gravely |
花园拖拉机 | |
Gravely 20-G 发动机 | |
|---|---|
20马力科勒770cc 2缸汽油 | |
燃油箱 | 5.3 加仑
20.1 升 |
发动机详情... | |
Gravely 20-G 变速箱 | |
|---|---|
8速变速器 | |
变速箱详情... |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
机械式带式制动器 | |
打开操作员站位。 |
照片 | |
|---|---|
![]() | |

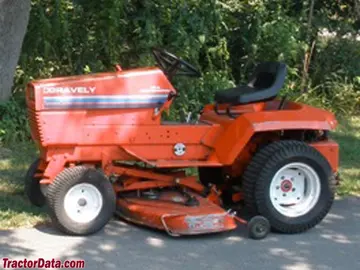

Gravely 20-G 照片... |
尺寸与轮胎 | |
|---|---|
轮距 | 52.3 英寸
132 厘米 |
重量 | 883 磅
400 公斤 |
前轮胎 | 16x7.50-8 |
后轮胎 | 23x10.50-12 |
完全尺寸和轮胎... | |
Gravely 20-G 附件 | |
|---|---|
50英寸中置割台 | |
60英寸中置割草机 | |
扫雪机 | |
刀片 | |
附件详情... |
电气 | |
|---|---|
地面 | 负面 |
充电电流 | 十五 |
电池电压 | 12 |
电池安时 | 四十二 |
电池组 | 22楼 |
参考文献 | |
|---|---|
![]() | |
1990年由Gravely出版的骑行式拖拉机 | |
1991年由Gravely出版的骑行拖拉机 | |
1998年由Gravely出版的骑行拖拉机 | |
操作员手册G系列(53213)于1992年出版 | |
专业服务手册 - G 系列 (26793B) |
