ingersoll lawn tractors 3016
![]() | 1989 - 2004
3000 系列花园拖拉机 | 1989 - 2004 | 3000系列 | 花园拖拉机 |
|---|---|---|---|---|
1989 - 2004 | ||||
3000系列 | ||||
花园拖拉机 | ||||
1989 - 2004 | |
|---|---|
3000系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | 英格索尔 |
花园拖拉机 | |
在美国威斯康星州的温尼康尼建造 | |
英格索尔3016发动机 | |
|---|---|
16马力 Onan 709cc 2缸汽油 | |
16马力 Briggs & Stratton 480cc 2缸汽油 | |
燃油箱 | 3 加仑
11.4 升 |
发动机详情... | |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
打开操作员站位。 |
照片 | |
|---|---|
![]() | |

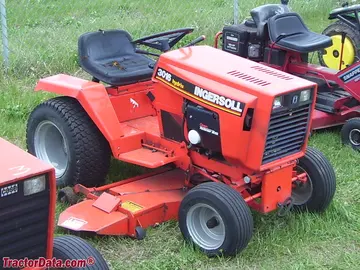

英格索尔3016照片... |
液压 | |
|---|---|
类型 | 开式中心 |
压力 | 2100 psi(变速箱)
144.8 巴 |
空白 | 575 psi(提升)
39.6 巴 |
阀门 | 2 |
泵流量 | 8 加仑/分钟
30.3 升/分钟 |
拖拉机挂钩 | |
|---|---|
后类型 | 0 可选 |
尺寸与轮胎 | |
|---|---|
轮距 | 46 英寸
116 厘米 |
重量 | 683 磅
309 公斤 |
前轮胎 | 16.50-8 |
后轮胎 | 23x10.50-12 |
完全尺寸和轮胎... | |
英格索尔3016配件 | |
|---|---|
42英寸中置式割草机平台 | |
44" 中置式割草机 | |
48英寸中置割草机 | |
扫雪机 | |
刀片 | |
附件详情... |

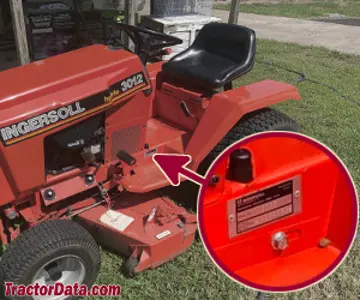

3016 序列号位置 | |
|---|---|
![]() | |
拖拉机车架左侧、脚踏板上方刻有序列号。 |
电气 | |
|---|---|
地面 | 负面 |
充电系统 | 飞轮交流发电机 |
充电电流 | 二十 |
充电电压 | 12 |
电池CCA | 三百 |
电池电压 | 12 |
参考文献 | |
|---|---|
![]() | |
紧凑型拖拉机3012、3014、3016、3018、3018PS、4016、4020、4020PS (8-59130) 于1993年发布 |
