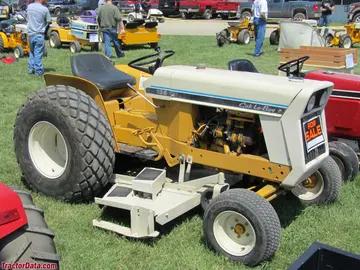

international harvester 185 lo boy
 | 1974 - 1976
Compact Utility tractor | 1974 - 1976 | Compact Utility tractor |
|---|---|---|---|
1974 - 1976 | |||
Compact Utility tractor | |||
1974 - 1976 | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | International Harvester |
Compact Utility tractor | |
Built in Louisville, Kentucky, USA | |
Original price was $4,300 in 1976 | |
International Harvester 185 Lo-Boy Engine | |
|---|---|
International Harvester 1.0L 4-cyl gasoline | |
Engine details ...  |
International Harvester 185 Lo-Boy Transmissions | |
|---|---|
3-speed unsynchronized gear | |
6-speed creeper | |
Transmission details ...  |
International Harvester 185 Lo-Boy Power | |
|---|---|
PTO (claimed) | 14 hp
10.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical drum brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
International Harvester 185 Lo-Boy photos...  |
Capacity | |
|---|---|
Fuel | 8 gal
30.3 L |
Hydraulic system | 1.75 gal
6.6 L |
Hydraulics | |
|---|---|
Type | gear pump |
Capacity | 1.75 gal
6.6 L |
Pressure | 2000 psi
137.9 bar |
Pump flow | 2 gpm
7.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | I (optional) |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | mechanical dry disc |
Rear PTO Type | 1600 (counter-clockwise) |
Dimensions & Tires | |
|---|---|
Wheelbase | 64 inches
162 cm |
Weight | 1497 lbs
679 kg |
Front tire | 4.00-12 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
International Harvester 185 Lo-Boy attachments | |
|---|---|
blade | |
Attachment details ...  |

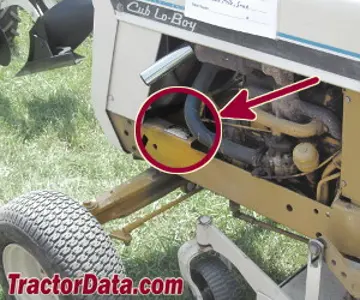

185 Lo-Boy Serial Number Location | |
|---|---|
 | |
Frame, front-left side |
185 Lo-Boy Serial Numbers | |
|---|---|
1974 | 37001 |
1975 | 37316 |
1976 | 42241 |
FAQ: How to read a serial number table. | |
Links | |
|---|---|
McCormick-Deering Farmall Cub: |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 12 |
| 15 (generator) |
Battery volts | 12 |
