jacobsen lawn tractors 1000
 | 1977 - 1980
1000系列花园拖拉机 | 1977 - 1980 | 1000系列 | 花园拖拉机 |
|---|---|---|---|---|
1977 - 1980 | ||||
1000系列 | ||||
花园拖拉机 | ||||
1977 - 1980 | |
|---|---|
1000系列 | |
花园拖拉机 |
生产 | |
|---|---|
制造商 | 雅各布森（Textron 的一部分） |
花园拖拉机 | |
在美国威斯康星州拉辛建造 | |
原始价格为1979年的2,199美元 | |
Jacobsen 1000 发动机 | |
|---|---|
10马力考勒391cc 1缸汽油 | |
燃油箱 | 2 加仑
7.6 升 |
发动机详情...  | |
杰各布森 1000 变速箱 | |
|---|---|
4速变速箱 | |
变速箱详情...  |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
机械式带式制动器 | |
打开操作员站位。 |
照片 | |
|---|---|
 | |
Jacobsen 1000 张照片...  |
拖拉机挂钩 | |
|---|---|
类型 | 袖式牵引装置 可选 |
动力输出 (PTO) | |
|---|---|
后 PTO | 独立可选 |
后部动力输出类型 | 3300 |
前置动力输出 | 独立 |
离合器 | 电动 |
尺寸与轮胎 | |
|---|---|
轮距 | 46 英寸
116 厘米 |
前轮胎 | 16x6.50-8 |
后轮胎 | 23x8.50-12 |
完全尺寸和轮胎...  | |
Jacobsen 1000 附件 | |
|---|---|
42英寸中置式割草机平台 | |
50英寸中置割台 | |
扫雪机 | |
刀片 | |
附件详情...  |

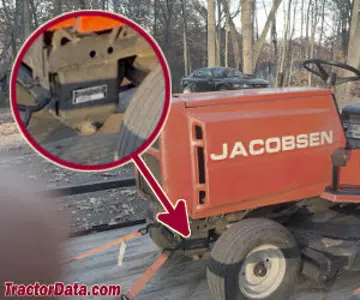

1000 序列号位置 | |
|---|---|
 | |
1000车架前右侧，前轴前方，有序列号牌。 |
电气 | |
|---|---|
地面 | 负面 |
电池电压 | 12 |
参考文献 | |
|---|---|
 | |
哪种拖拉机适合您？由Jacobsen于1977年出版 | |
工程设计用于实现更多功能的拖拉机。由Jacobsen于1978年出版 |
