john deere lawn tractors e90
![]() | 1972 - 1974
型号年份 19721973-1974
骑乘式割草机 | 1972 - 1974 | 型号年份 19721973-1974 | 骑乘式割草机 |
|---|---|---|---|---|
1972 - 1974 | ||||
型号年份 19721973-1974 | ||||
骑乘式割草机 | ||||
1972 - 1974 | |
|---|---|
型号年份 19721973-1974 | |
骑乘式割草机 |
生产 | |
|---|---|
制造商 | 约翰·迪尔 |
骑乘式割草机 | |
约翰迪尔 E90 发动机 | |
|---|---|
0.9HP 电动 | |
发动机详情... |
约翰迪尔 E90 变速箱 | |
|---|---|
3速齿轮 | |
变速箱详情... |
机械的 | |
|---|---|
两轮驱动 | |
手动转向 | |
机械式带式制动器 | |
开放的操作员站 |

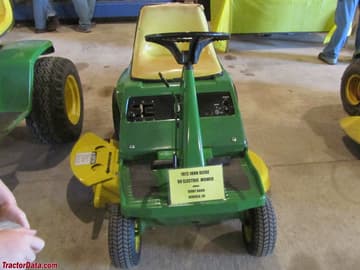

照片 | |
|---|---|
![]() | |
约翰迪尔E90照片... |
尺寸与轮胎 | |
|---|---|
轮距 | 40 英寸
101 厘米 |
重量 | 475 磅
215 公斤 |
前轮胎 | 11x4.00-5 |
后轮胎 | 16x16.50-8 |
完全尺寸和轮胎... | |
约翰迪尔E90配件 | |
|---|---|
34英寸中置式割草机 | |
刀片 | |
附件详情... |
E90序列号 | |
|---|---|
位置: | 割草机右后侧的序列号牌。 |
一九七二年 | 零零一零零一 |
一九七三 | 零零零零零一 |
一九七四年 | 零一七零五 |
常见问题解答:如何读取序列号表。 | |
参考文献 | |
|---|---|
![]() | |
1971年发布的新约翰迪尔电动骑乘割草机 | |
1972年发布的新款约翰迪尔电动骑乘割草机 | |
1975年由John Deere出版的骑行式割草机 | |
约翰迪尔电动90割草机服务手册(SM-2098)1973年出版 |
