john deere lawn tractors r70
 | 1984 - 1986
骑乘割草机 | 1984 - 1986 | 骑乘式割草机 |
|---|---|---|---|
1984 - 1986 | |||
骑乘式割草机 | |||
1984 - 1986 | |
|---|---|
骑乘式割草机 |
生产 | |
|---|---|
制造商 | 约翰·迪尔 |
骑乘式割草机 | |
原始价格为1983年的1199美元 | |
约翰迪尔R70发动机 | |
|---|---|
8马力 Briggs & Stratton 1缸汽油 | |
燃油箱 | 1.25 加仑
4.7 升 |
发动机详情...  | |
约翰迪尔R70变速器 | |
|---|---|
5档变速器 | |
变速箱详情...  |
机械的 | |
|---|---|
两轮驱动 | |
转向 | 手动 |
机械式带式制动器 | |
开放的操作员站 | |

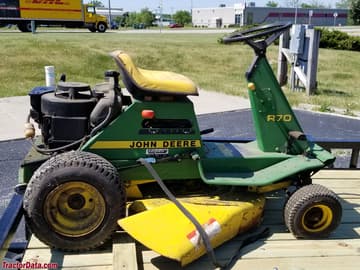

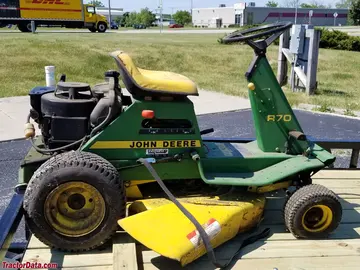

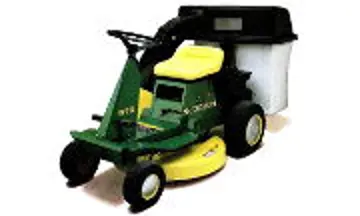

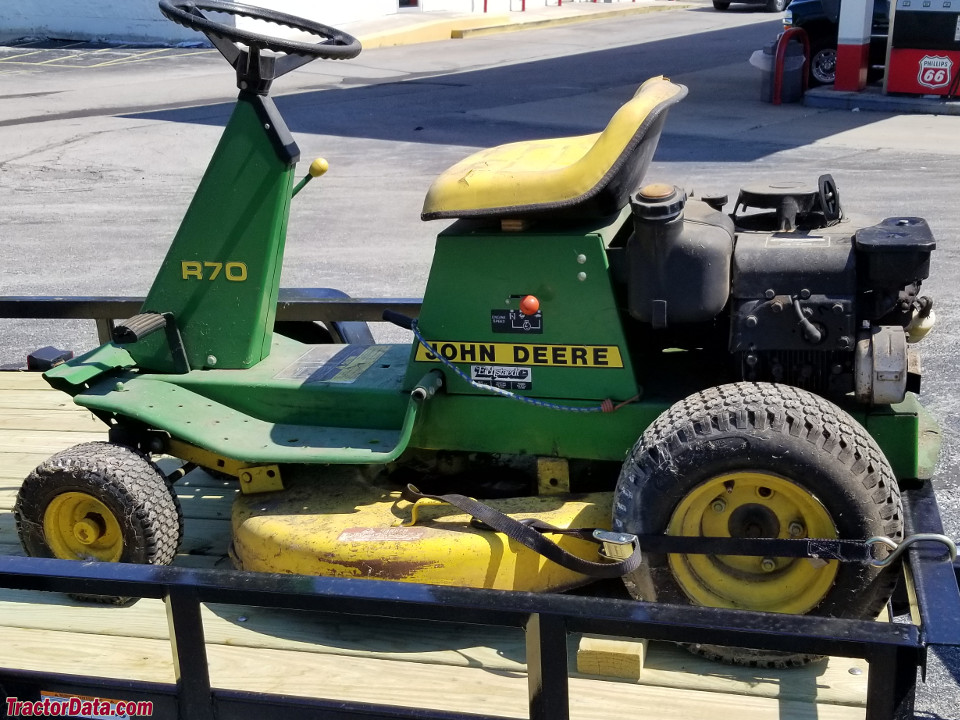

照片 | |
|---|---|
 | |
约翰迪尔R70照片...  |
动力输出 (PTO) | |
|---|---|
中置 PTO | 独立 |
离合器 | 机械的 |
尺寸与轮胎 | |
|---|---|
轮距 | 42英寸
106厘米 |
重量 | 275 磅
124 公斤 |
前轮胎 | 11x4.00-5 |
后轮胎 | 16x6.50-8 |
完全尺寸和轮胎...  | |
约翰·迪尔R70配件 | |
|---|---|
30英寸中置割草机 | |
附件详情...  |
R70 序列号 | |
|---|---|
位置: | 拖拉机的信息。拖拉机的序列号牌位于割草机的左后方，靠近牵引装置。 |
参考文献 | |
|---|---|
 | |
1985年由约翰·迪尔出版的骑乘割草机和拖拉机 | |
1986年出版的约翰迪尔草坪拖拉机和骑行式割草机 | |
R70、R72、R92、S82 和 S92 骑乘割草机操作手册 (OM-M88160)，出版于 1985 年 | |
1983年由John Deere出版的消费品价格表 | |
1983年由约翰·迪尔出版的地面维护设备购买指南 |
